Juraj Smieško

CERN

FCC Software Meeting

CERN, 25 Sep 2023

Key4hep

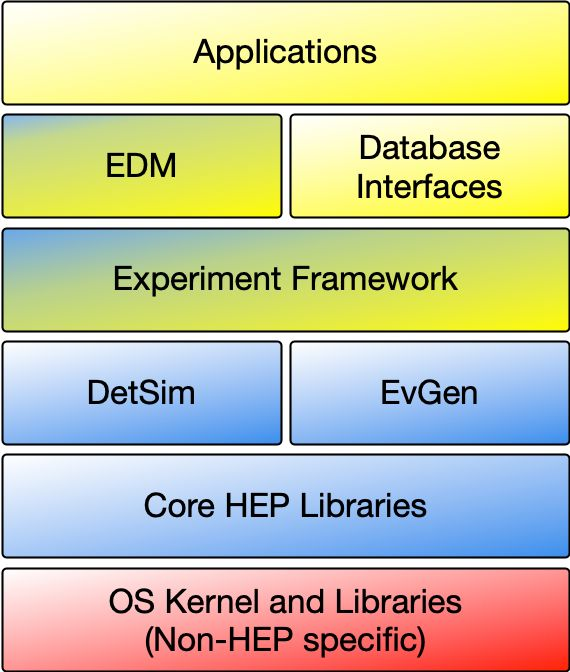

• Set of common software packages, tools, and standards for different Detector concepts
• Common for FCC, CLIC/ILC, CEPC, EIC, …
• Individual participants can mix and match their stack

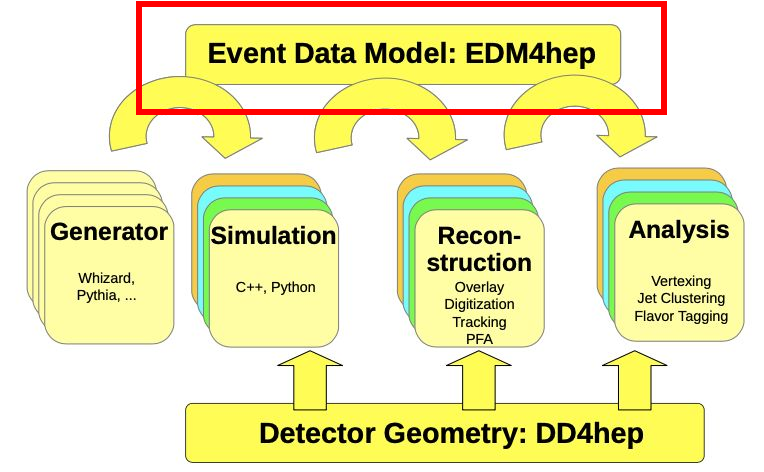

• Main ingredients:

  • Data processing framework: Gaudi
  • Event data model: EDM4hep
  • Detector description: DD4hep
  • Software distribution: Spack

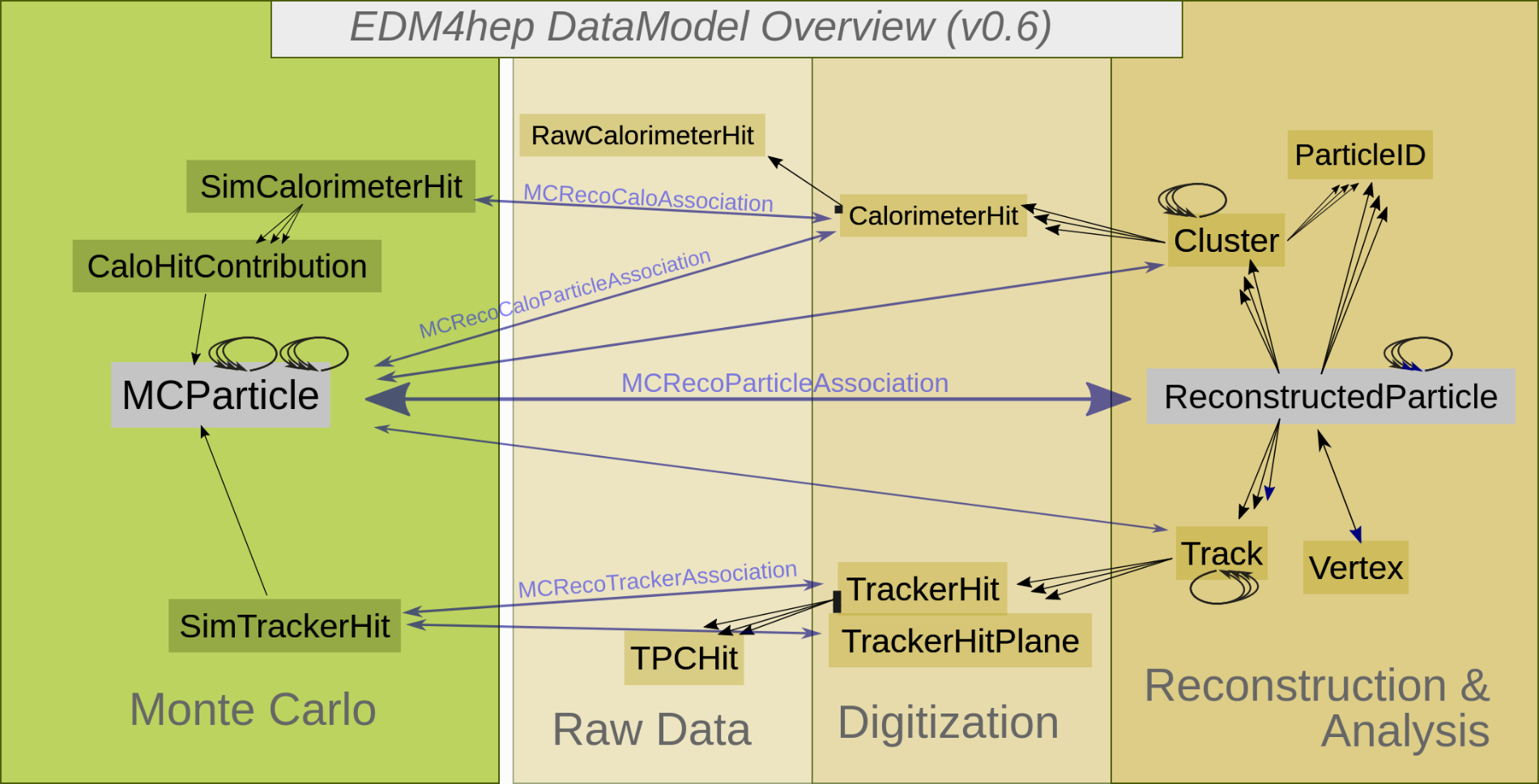

EDM4hep I.

EDM4hep II.

#------------- SimCalorimeterHit
edm4hep::SimCalorimeterHit:
  Description: "Simulated calorimeter hit"
  Author: "F.Gaede, DESY"
  Members:
    - uint64_t cellID       //ID of the sensor that created this hit
    - float energy                    //energy of the hit in [GeV].
    - edm4hep::Vector3f position      //position of the hit in world coordinates in [mm].
  OneToManyRelations:
    - edm4hep::CaloHitContribution contributions  //Monte Carlo step contribution - parallel to particle

Podio

Generates Event Data Model and serves as I/O Layer

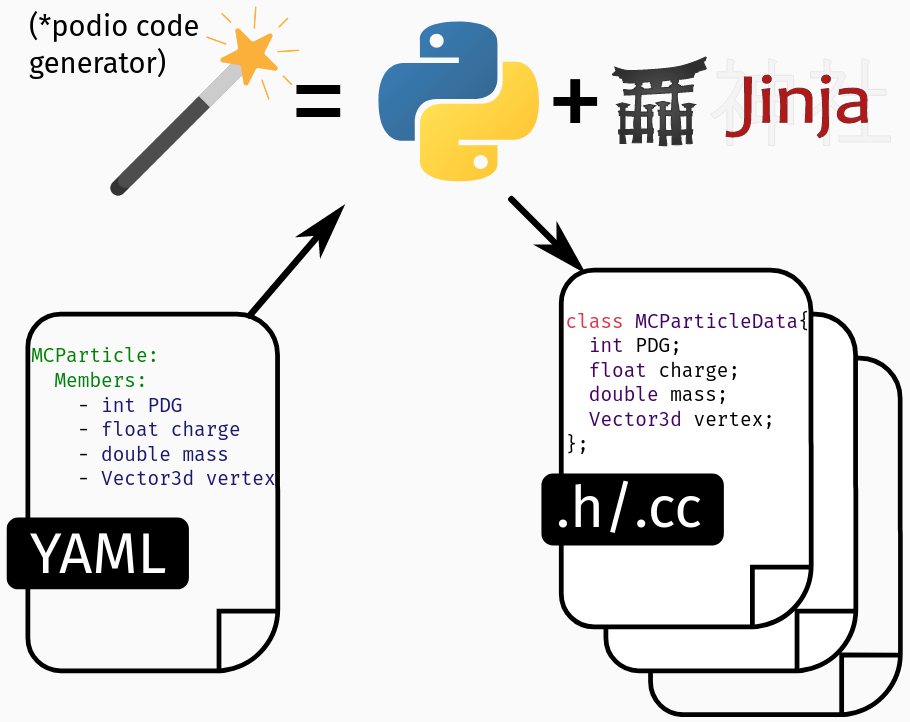

• Generates EDM from YAML files

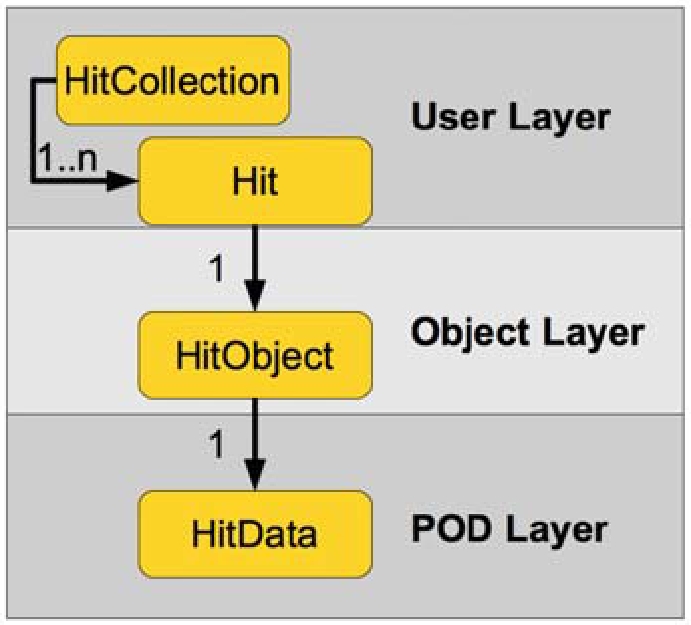

• I/O machinery consists of three layers
  • POD Layer - arrays of the actual data structures
  • Object Layer - handles the relations
  • User Layer - handles to the EDM objects
• Supports multiple backends:
  • ROOT, SIO
• Current version: 0.17.0

Podio: Recent Changes

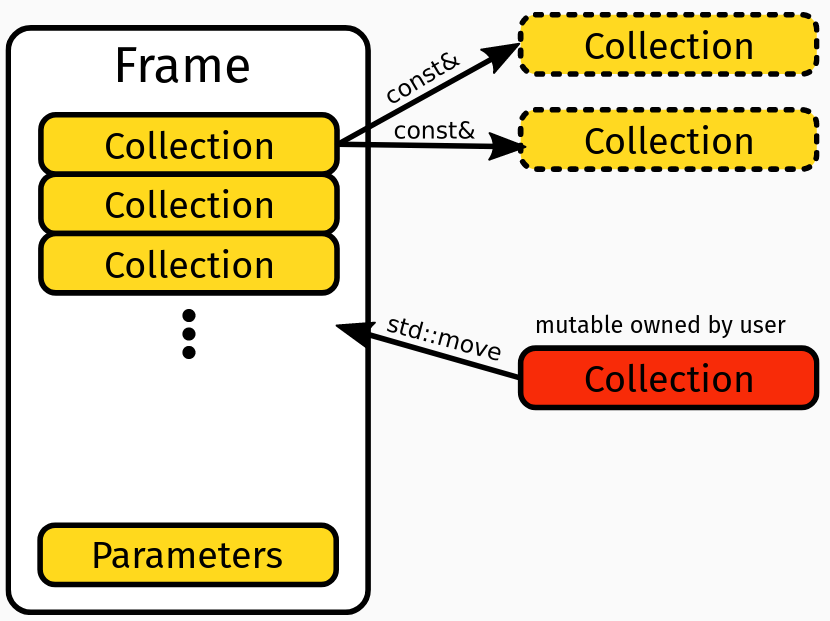

Frames

• Frame is a container aggregating all relevant data
• Defines an interval of validity / category for contained data
  • Event, Run, readout frame, &dots;
• Thread safe interface

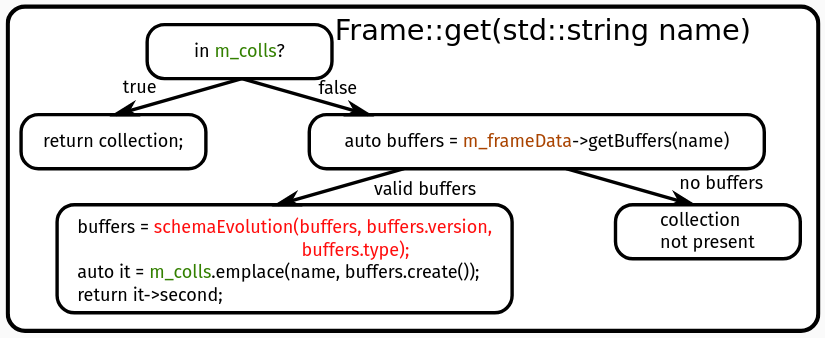

Schema evolution

• Introduces visioning to the Collection types
• Handles changes between different versions
• Evolution always to latest version

More details: T. Madlener

FCCAnalyses Datasets

Plethora of processes are pre-generated and available from EOS

• Two main production campaigns in use:
• Spring 2021
• Winter 2023
• Processes are identified by its name, e.g.: p8_ee_WW_ecm240
• The production Database browsable at:
  fcc-physics-events.web.cern.ch
• Example:
  Delphes events, IDEA, FCCee, winter 2023
• EOS directory:
  /eos/experiment/fcc/...
• Generation handled by EventProducer

podio-dump

15:32:16 [jsmiesko@fcc-ironic-02 metadata]$ podio-dump -h
usage: podio-dump [-h] [-c CATEGORY] [-e ENTRIES] [-d] [--dump-edm DUMP_EDM] [--version] inputfile

Dump contents of a podio file to stdout

positional arguments:
  inputfile             Name of the file to dump content from

options:
  -h, --help            show this help message and exit
  -c CATEGORY, --category CATEGORY
                        Which Frame category to dump
  -e ENTRIES, --entries ENTRIES
                        Which entries to print. A single number, comma separated list of numbers or
                        "first:last" for an inclusive range of entries. Defaults to the first entry.
  -d, --detailed        Dump the full contents not just the collection info
  --dump-edm DUMP_EDM   Dump the specified EDM definition from the file in yaml format
  --version             show program's version number and exit





11:27:15 [jsmiesko@fcc-ironic-02 metadata]$ podio-dump -e 1 output_fullCalo_SimAndDigi.root
input file: output_fullCalo_SimAndDigi.root

datamodel model definitions stored in this file: edm4hep

Frame categories in this file:
Name                 Entries
-------------------------------
metadata             1
events               2
configuration_metadata 1

#################################### events 1 ####################################
Collections:
Name                       ValueType                  Size  ID
-------------------------  -----------------------  ------  --------
CaloClusters               edm4hep::Cluster              1  706db4eb
CorrectedCaloClusters      edm4hep::Cluster              1  38fde31e
ECalBarrelCells            edm4hep::CalorimeterHit      80  269139f6
ECalBarrelPositionedCells  edm4hep::CalorimeterHit      80  65cb8aec
ECalEndcapCells            edm4hep::CalorimeterHit       0  55d4e559
GenParticles               edm4hep::MCParticle           1  0bcf5f90

Parameters:
Name    Type    Elements
------  ------  ----------

edm4hep2json

13:28:43 [jsmiesko@fcc-ironic-02 metadata]$ edm4hep2json -h
Usage: edm4hep2json [olenfvh] FILEPATH
  -o/--out-file           output file path
                            default: "?edm4hep.root" --> ".edm4hep.json"
  -l/--coll-list          comma separated list of collections to be converted
  -e/--events             comma separated list of events to be processed
  -n/--nevents            maximal number of events to be processed
  -f/--frame-name         input frame name
                            default: "events"
  -v/--verbose            be more verbose
  -h/--help               show this help message

collInfo

13:33:46 [jsmiesko@fcc-ironic-02 Podio (main=)]$ ./collInfo /eos/experiment/fcc/ee/generation/DelphesEvents
/winter2023/IDEA/p8_ee_ZZ_ecm240/events_092194859.root
ID   Name                     Type
--------------------------------------------------------------------------
 1   MissingET                edm4hep::ReconstructedParticleCollection
 2   MCRecoAssociations       edm4hep::ReconstructedParticleCollection
 3   ParticleIDs              edm4hep::ReconstructedParticleCollection
 4   magFieldBz               edm4hep::ReconstructedParticleCollection
 5   TrackerHits              edm4hep::MCRecoParticleAssociationCollection
 6   EFlowTrack               edm4hep::ParticleIDCollection
 7   CalorimeterHits          podio::UserDataCollection
 8   Particle                 edm4hep::TrackerHitCollection
 9   Photon                   edm4hep::TrackCollection
10   EFlowTrack_L             edm4hep::CalorimeterHitCollection
11   Electron                 edm4hep::MCParticleCollection
12   EFlowPhoton              edm4hep::ClusterCollection
13   EFlowNeutralHadron       edm4hep::ReconstructedParticleCollection
14   Jet                      podio::UserDataCollection
15   ReconstructedParticles   edm4hep::ReconstructedParticleCollection
16   Muon                     edm4hep::ClusterCollection
--------------------------------------------------------------------------

Conclusions

• EDM4hep files can be inspected by several tools
  • podio-dump, collInfo, edm4hep2json
• Improvements needed toward visualization of collection relations
• Not all parts of FCCSW stack fully utilize PODIO
  • FCCAnalyses — uses only POD Layer
• EDM4hep will need changes for FCC full simulation
• Policies how to save event data into datamodel in flux

Backup

Compatibility table
