Developments in FCCAnalyses

Status for June 2023

Juraj Smieško

FCC Software Meeting

26 June 2023

FCCAnalyses Scope

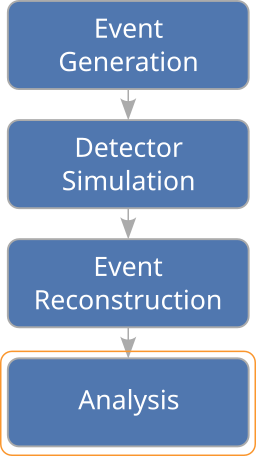

Goal of the framework is to aid the user in obtaining the desired physics results from the reconstructed objects

Framework requirements:

Efficiency — Make quick turn-around possible
Flexibility — Allow heavy customization
Ease of use — Should not be hard to start using
Scalable — Handling of large datasets

Key4hep status

Stable Key4hep stack:

/cvmfs/sw.hsf.org/spackages7/key4hep-stack/2023-04-08/
x86_64-centos7-gcc11.2.0-opt/urwcv/setup.sh

Overview of Key4hep developments by Juan at
EP R&D Software Working Group Meeting
- EDM4hep Python bindings
- podio: RNTuple backend on the way
- Key4hep Validation
Overview of Generators at Key4hep by Gerri at
ECFA Higgs Factories: 2nd Topical Meeting on Generators
Next FCC Physics Performance Meeting tomorrow

FCCAnalyses status

Merged PRs:

FCCAnalyses #292: Fixed handling of empty outputDir
Podio #412: Collection ID is now 32 bit hash
Podio #427: Improved podio-dump

Issues:

#291: Branch names for relations now easier to read

Upcoming

k4FWCore #100: Podio Frame IO for Gaudi steering files
WIP EDM4hepSource:
Allows high level access to EDM4hep objects in ROOT RDataFrame

Datamodel eXplorer

Simple JavaScript application to explore event MC tree: dmX

Documentation & Platforms

There are several sources of documentation

FCC Tutorials: https://hep-fcc.github.io/fcc-tutorials/
- Focused on providing a tutorial on a specific topic
Code reference: https://hep-fcc.github.io/FCCAnalyses/doc/latest/index.html
- Provides details about implementation of individual analyzers
Manual pages:
- Info about commands directly in the terminal: man fccanalysis
FCCAnalyses website, FCCSW website

Please test Key4hep nightlies stack

Three OSes supported: CentOS 7, AlmaLinux 9 and Ubuntu 22.04

Backup

FCCAnalyses vs. Coffea/Coffea-casa

Provides similar set of features to FCCAnalyses
Dataframe in coffea, Orchestration in coffea-casa
User interface purely pythonic
Integrated into python package ecosystem
FCCAnalysis purpose build for FCC
Integration with SWAN and Dask

FCCAnalyses batch submissions

FCCAnalyses allows users to submit their jobs onto HTCondor
It bootstraps itself with use of scripts in subprocesses
Framework creates two files

Shell script with fccanalysis command
Condor configuration file

There is also possibility to add user provided Condor parameters
Condor environment now isolated from machine where the submission was done
Revised tracking across chunks/stages done with the variable in the ROOT file

Sub-command routing

There are three ways to run the analysis

fccanalysis run my_analysis.py
python config/FCCAnalysesRun.py my_analysis.py

Can this way be dropped?

python my_analysis.py

Removed reliance on try/catch for sub-command routing

Code formatting

Currently, there is wide range of styles used
End goal: Make the analyzers better organized

They are building blocks of the analysis

Created CI to check every commit
LLVM Style selected based on popularity
Only changed lines are checked

Updated vertexing

Vertexing done with the help of code from Franco B.
Introduces dependency on Delphes
Introduces new analyzers: SmearedTracksdNdx, SmearedTracksTOF
Simplifies Delphes–EDM4hep unit gymnastic
Adds examples for B_s to D_s K

Building of FCCAnalyses

FCCAnalyses is a package in the Key4hep stack
Advanced users can work directly on their forks

Allows to keep the analysis ''cutting edge''
Requires discipline

Added helper sub-command: fccanalysis build
Current distribution mechanisms:

Using released version in Key4hep stack
Separate git repository + stable Key4hep stack
Separate git repository + nightlies stack

Key4hep stack pin

FCCAnalyses is developed on top of Key4hep stack
Sometimes depends on specific version of the package
Added helper sub-command: fccanalysis pin
Will pin the analysis to a specific version of the Key4hep stack

There is no patch mechanism in the Key4hep stack
