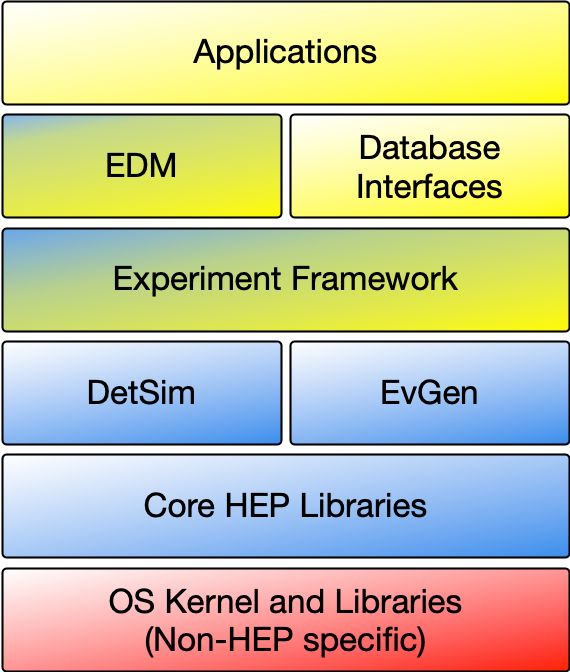

EDM4hep I.

EDM4hep II.

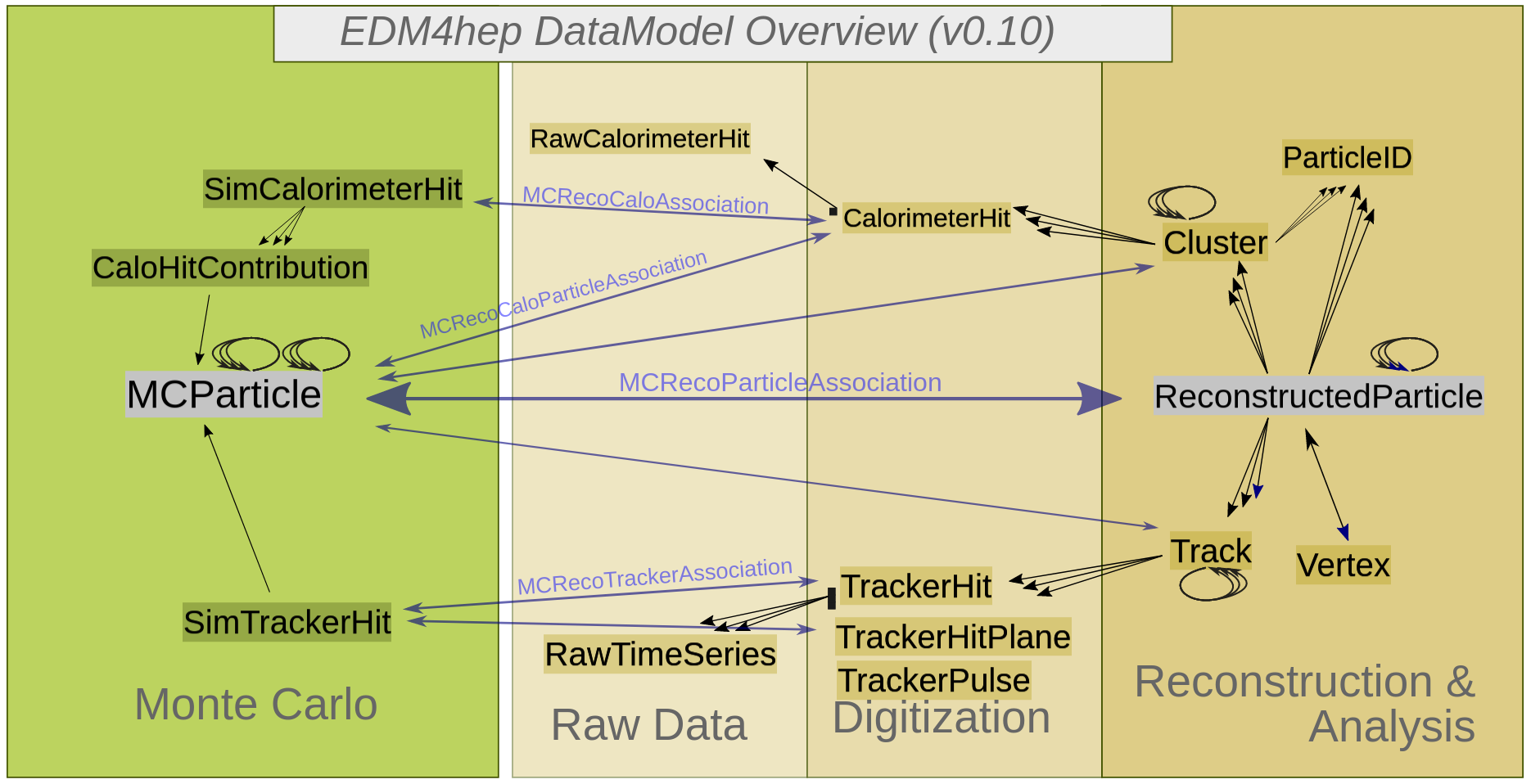

EDM4hep 1.0

Podio

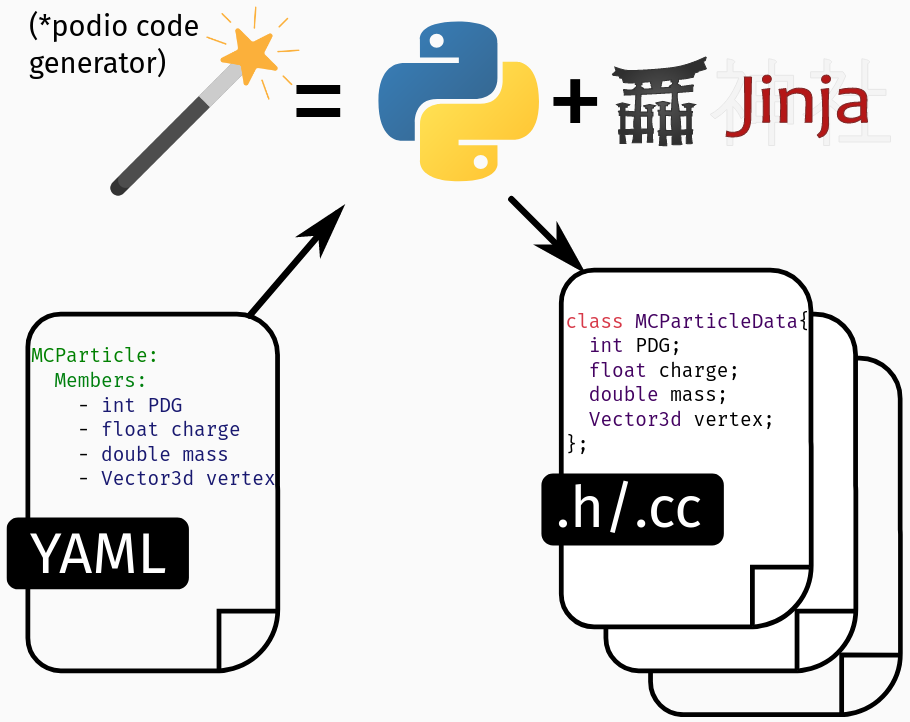

Generates Event Data Model and serves as I/O Layer

• Generates EDM from YAML files
• Employs plain-old-data (POD) data structures

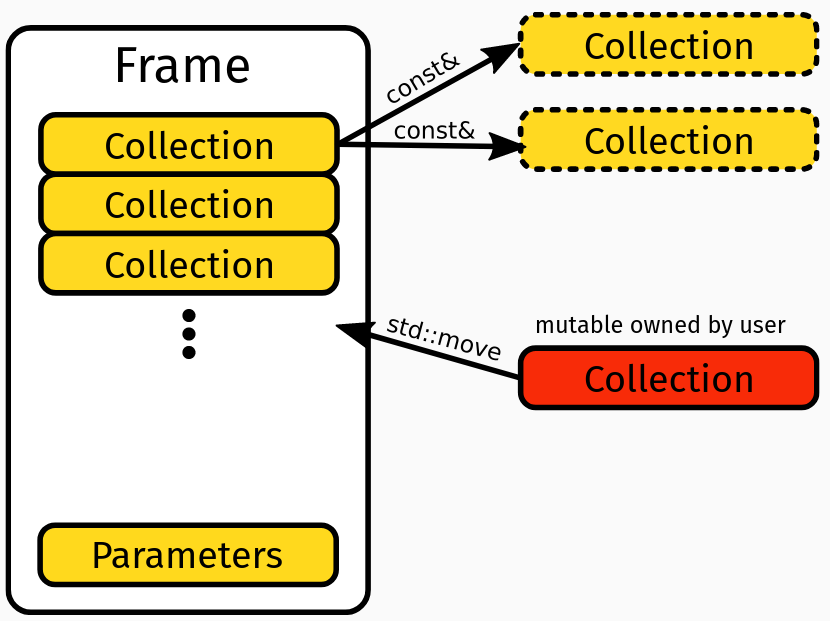

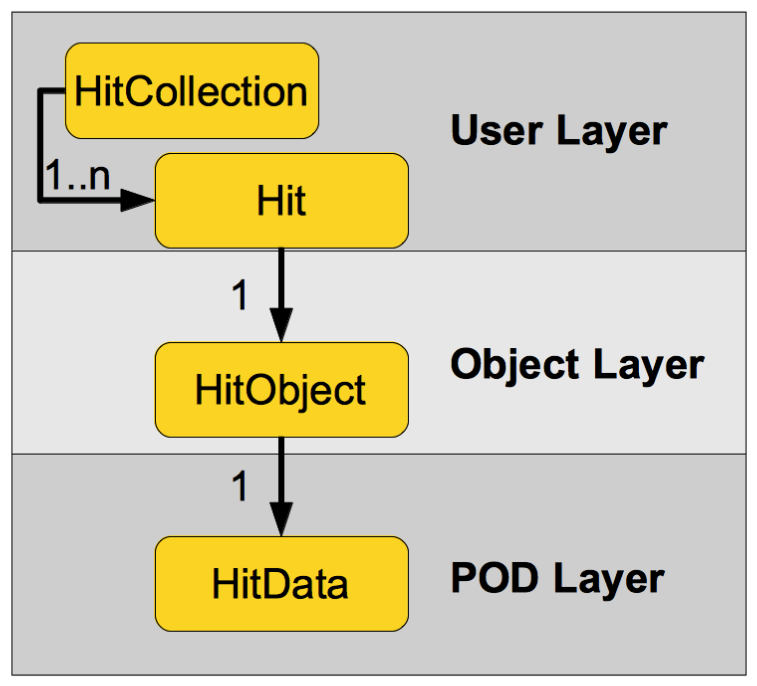

• I/O machinery consists of three layers
  • POD Layer - actual data structures
  • Object Layer - helps resolve the relations
  • User Layer - full fledged EDM objects
• Supports multiple backends:
  • ROOT, SIO, ...
• Current version: 0.99

Podio Reader

Constructs the EDM4hep objects for the user

Example usage of Podio Reader in Pyhton:

ROOT RDataFrame

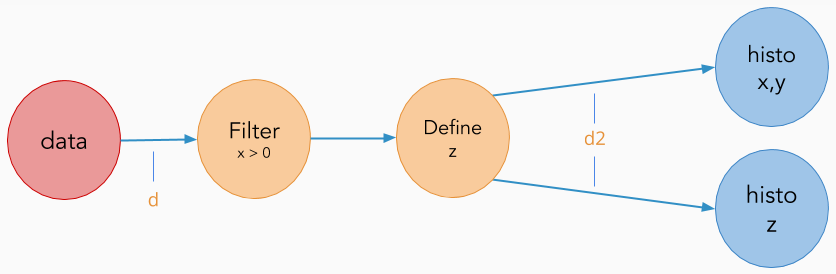

• Describes processing of data as actions on table columns
  • Defines of new columns
  • Filter rules
  • Result definitions (histogram, graph)
• The actions are lazily evaluated
• Multi threading is available out of the box
• Optimized for bulk processing
• Allows integration of existing C++ libraries

ROOT RDataSource + Podio

RDataSource defines an API that RDataFrame can use to read arbitrary data formats.

• RDataSource provides EDM4hep(Podio) collections to the RDataFrame event-by-event
• Collections are constructed by Podio readers
• RDataSource can decide how to organize reading of the events
  • ATM: Not at all optimized
• Multi-threaded implementation
• Might easily support other Podio backends (SIO, ...)
• Schema evolution support

Reading EDM4hep in FCCAnalyses

• EDM4hep collection is read in by RDataFrame directly and presented to the user in form:
  • This is per event
  • No convenient access to relationships
• Example of a simple function:

• In the course of the analysis the EDM4hep slowly decays into more trivial objects

Relations

• One collection can contain one-to-one or one-to-many relations to other collections, e.g.:
  • CaloHit ⇶ CaloHitContribution
  • MCParticle ⇶ MCParticle
• Typically relationships between derived objects (Sim. side separated from Reco. side)
• Example analyzer (FCC Tutorials link):

Relations in DataSource

• One collection can contain one-to-one or one-to-many relations to other collections, e.g.:
  • CaloHit ⇶ CaloHitContribution
  • MCParticle ⇶ MCParticle
• Typically relationships between derived objects (Sim. side separated from Reco. side)
• Possible rewrite:

Associations

• One-to-one relationships between two collection types, e.g.:
  • MCParticle ↔ ReconstructedParticle
  • SimTrackerHit ↔ TrackerHit
• Relationships between Simulation and Reconstruction side
• Example analyzer: Association between RecoParticle and MCParticle (link):

Associations in DataSource

• One-to-one relationships between two collection types, e.g.:
  • MCParticle ↔ ReconstructedParticle
  • SimTrackerHit ↔ TrackerHit
• Relationships between Simulation and Reconstruction side
• Possible rewrite:

Small sample benchmarks

• Three scenarios:
  • Simple C++ analysis
  • C++ analysis with associations
  • Python analysis: analysis_stage1.py example
• 300k events
• Local storage
• 4 threads
• DataSource takes approx. 2× memory and 2× execution time
• More tests needed:
  • More complex (real) analysis
  • Running on over the network sample

Simple C++ analysis

DataSource:

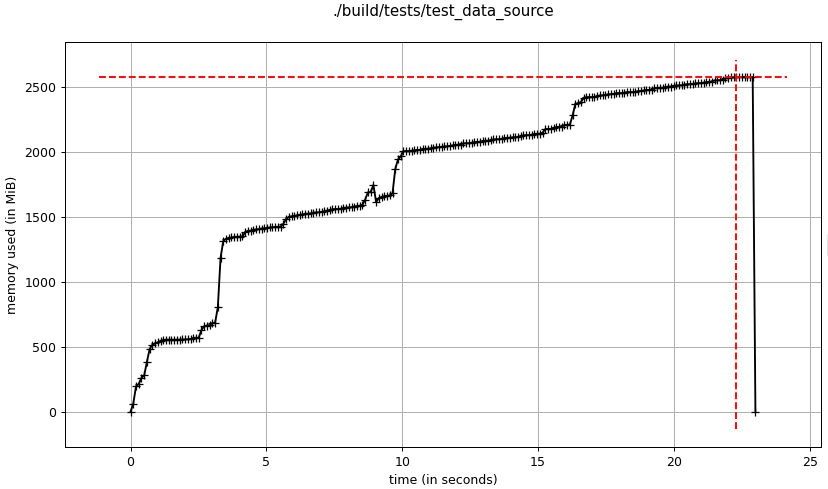

• Max RAM: 2.6 GiB
• Run time: 23 s

Current implementation:

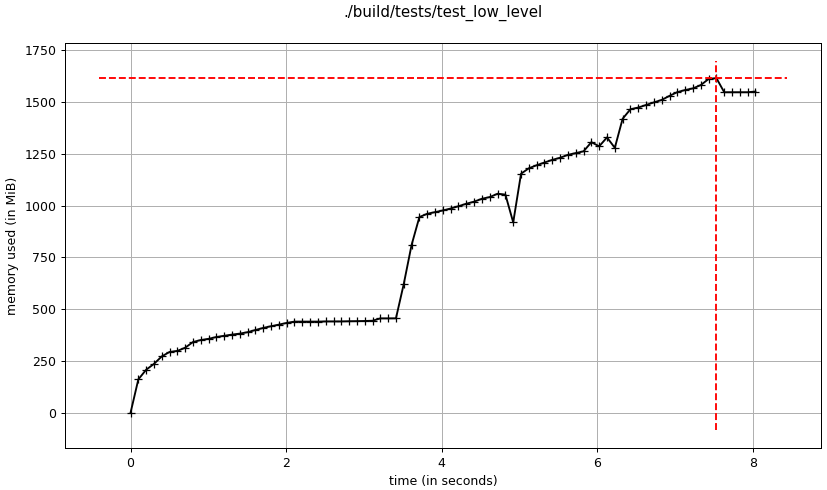

• Max RAM: 1.6 GiB
• Run time: 8 s

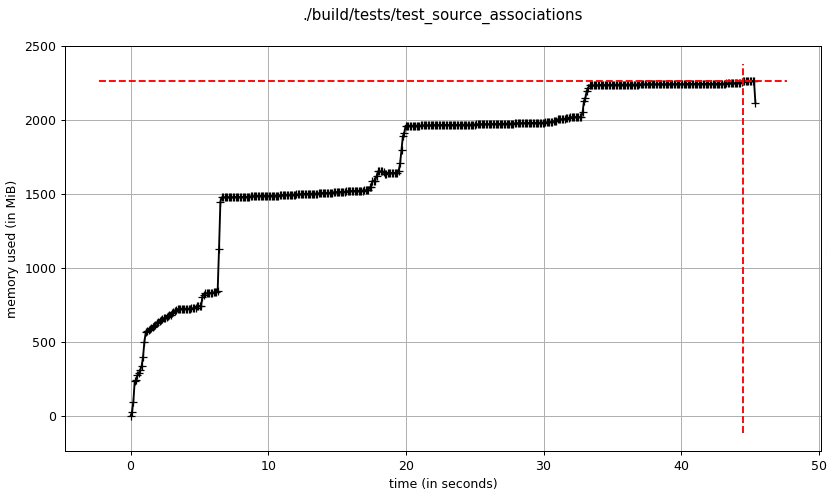

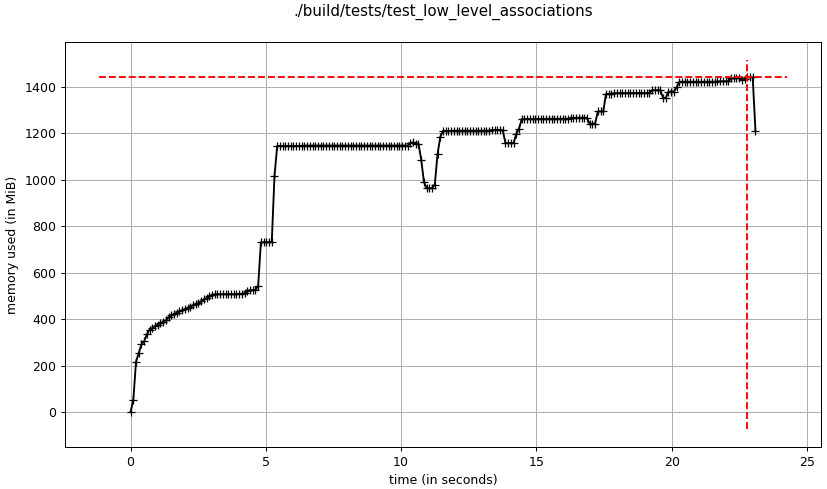

C++ analysis with Associations

DataSource:

• Max RAM: 2.3 GiB
• Run time: 45 s

Current implementation:

• Max RAM: 1.45 GiB
• Run time: 23 s

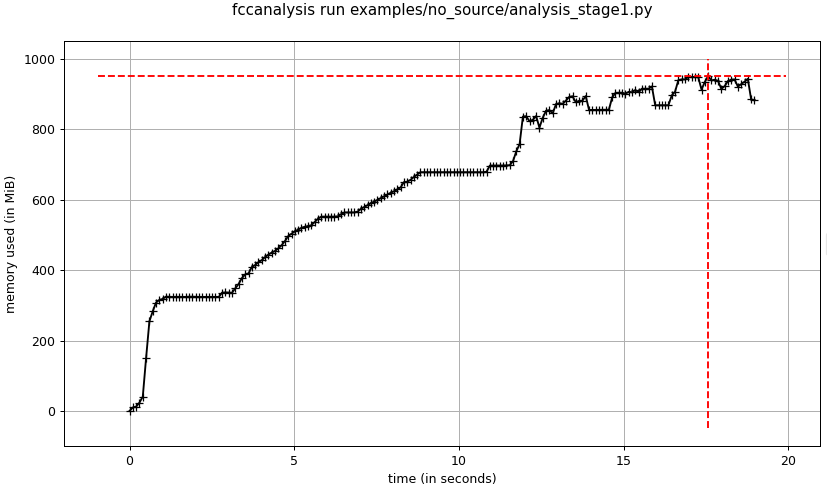

FCCAnalyses stage 1 (Python)

DataSource:

• Max RAM: 3.4 GiB
• Run time: 75 s

Current implementation:

• Max RAM: 0.95 GiB
• Run time: 19 s
