Juraj Smieško (CERN)

ROOT Users Workshop 2025

CERN

19 November 2025

Key4hep

Coherent set of packages, tools, and standards for future colliders

• Common effort from FCC, CLIC/ILC, EIC, CEPC, Muon Collider, …
  • Preserves and adds onto existing functionality from iLCSoft, FCCSW, CEPCSW, …
  • Builds on top of the experience from LHC experiments and results of targeted R&D (AIDA, …)
  • Many institutes involved: CERN, DESY, IHEP, INFN, IJCLab, …
• Each project rebases its stack on top of Key4hep
• Having common building blocks enables synergies across collider communities
• Main ingredients:

  • Event data model: EDM4hep, based on PODIO, AIDA project
  • Event processing framework: Gaudi, used in LHCb, ATLAS, …
  • Detector description: DD4hep, AIDA project
  • System to build, test and deploy: Spack, suggested by HSF + CVMFS
• Is there a Key4hep logo?

FCC Analysis

• FCCAnalyses — common analysis framework for FCC:
  • ROOT RDataFrame based
  • Provides analyzer functions/functors of varying complexity
    • Analysis is composed out of those
  • Written in C++ and Python
  • Handles input dataset metadata
  • Manages running of the dataframe: locally or on HTCondor
  • Events data can be read in directly by RDF or through RDataSource
• Accompanying infrastructure of FCCAnalyses
  • EventProducer — homegrown dataset production system
  • FCC Physics Events — publishing of the dataset metadata
  • FCCeePhysicsPerformance and FCChhPhysicsPerformance
• Getting help
  • FCC Software Forum and Mattermost

EDM4hep I.

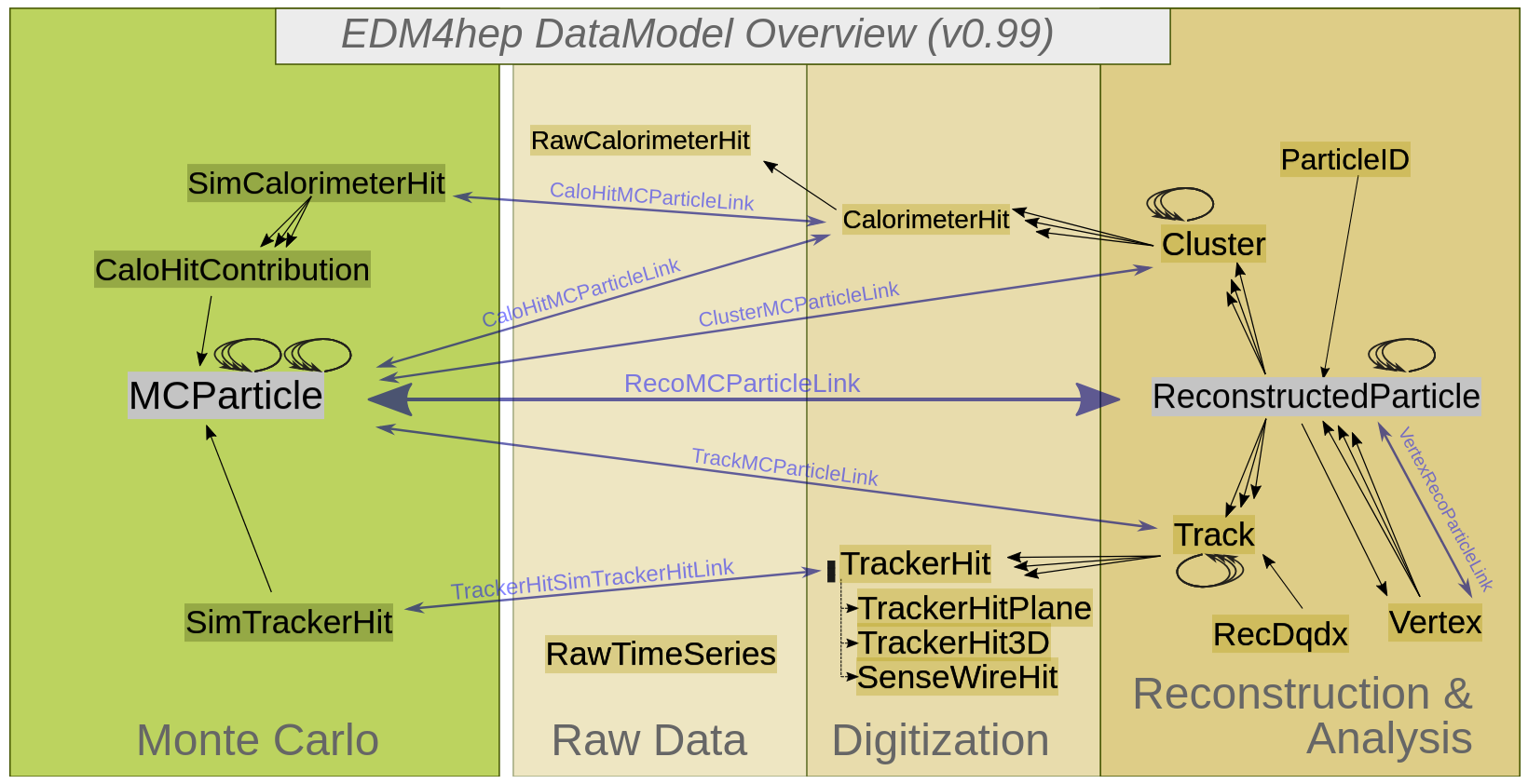

Common language for processing and persistifying data

EDM4hep II.

PODIO

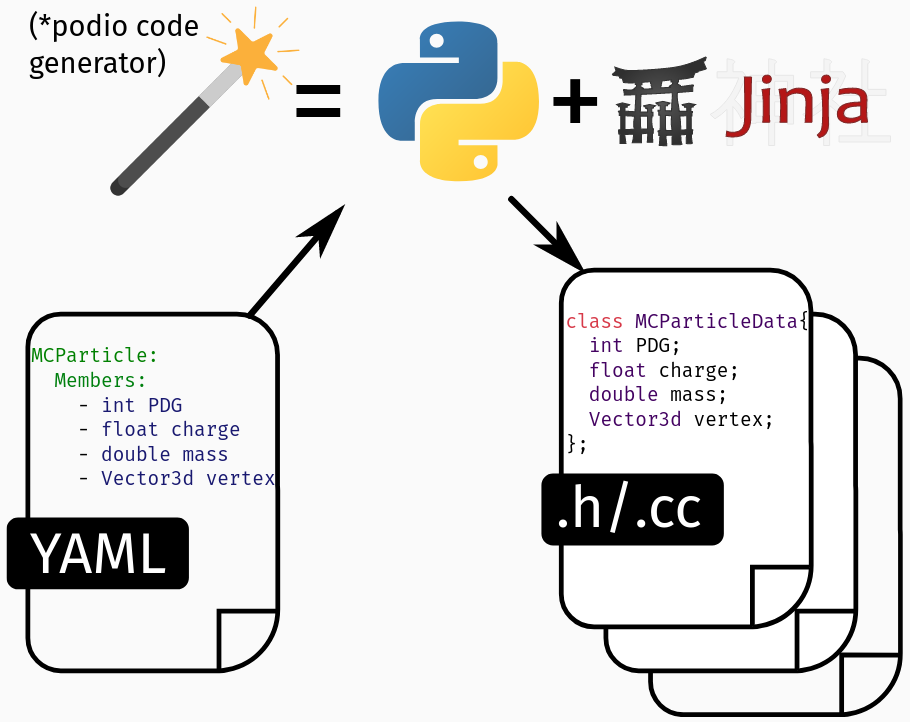

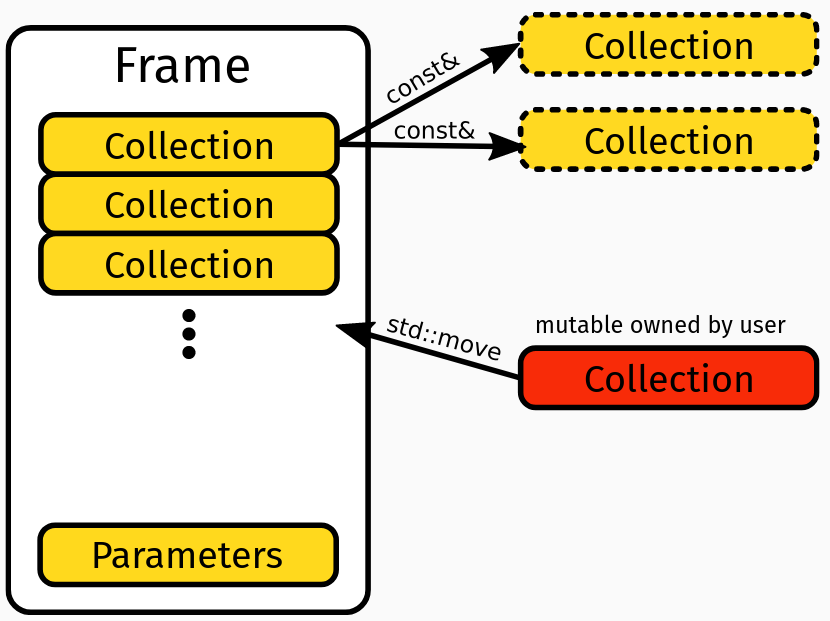

• Generates C++ classes from YAML file using Jinja2 templating
• Employs plain-old-data (POD) data structures

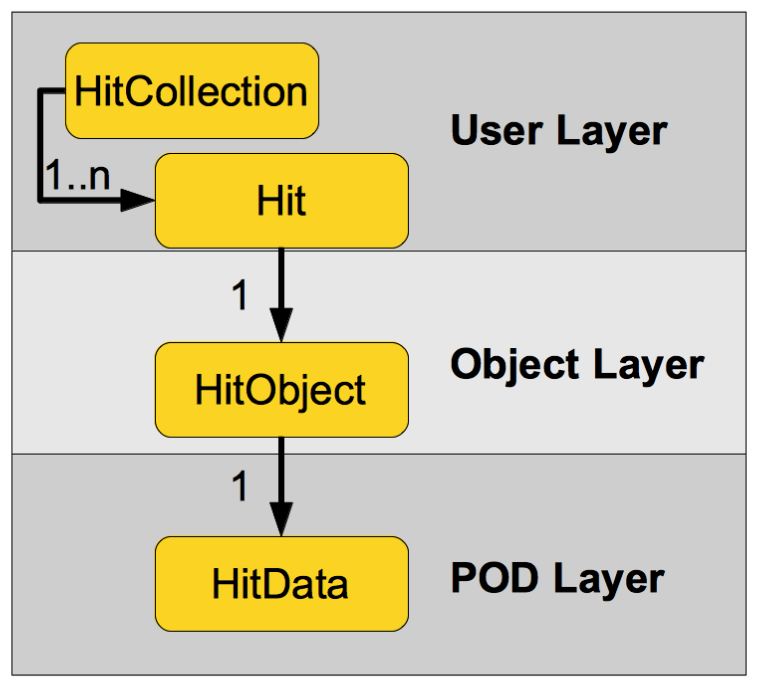

• I/O machinery consists of three layers
  • POD Layer - actual data structures
  • Object Layer - helps resolve the relations
  • User Layer - user facing layer with fully fledged objects
• Supports multiple backends:
  • ROOT TTree, ROOT RNTuple, SIO
• Current version: 1.06

PODIO Reader

Example usage of PODIO Reader in Python:

ROOT RDataFrame + PODIO

Employing of the RDataSource API

• RDataSource provides EDM4hep(PODIO) collections to the RDataFrame event-by-event
• Collections are constructed by PODIO readers
• RDataSource decides how to organize reading of the events
  • To be optimized
• Multi-threaded: One PODIO Reader per thread
• All PODIO backends supported out of the box(TTree, RNTuple, SIO)
• EDM4hep schema evolution kicks in

Reading EDM4hep in FCCAnalyses

• EDM4hep collection is read in by RDataFrame directly and presented to the user in the form:
  • This is per event
  • No convenient access to relationships
• Example of a simple function:

• In the course of the analysis the EDM4hep slowly decays into flatter objects, i.e. PODs and POD vectors

EDM4hep Relations with RVecs

• One collection can contain one-to-one or one-to-many relations to other collections, e.g.:
  • RecDqdx → Track
  • CaloHit ⇶ CaloHitContribution
  • MCParticle ⇶ MCParticle
• Typically relationships between related objects (Sim. side separated from Reco. side)
• Handling of the indexes is cumbersome
• Example analyzer (FCC Tutorials link):

EDM4hep Relations Using DataSource

• One collection can contain one-to-one or one-to-many relations to other collections, e.g.:
  • RecDqdx → Track
  • CaloHit ⇶ CaloHitContribution
  • MCParticle ⇶ MCParticle
• Typically relationships between related objects (Sim. side separated from Reco. side)
• Possible rewrite:

Links

• One-to-one relationships between two collection types, e.g.:
  • MCParticle ↔ ReconstructedParticle
  • SimTrackerHit ↔ TrackerHit
• Relationships between Simulation and Reconstruction side
• They behave as collections, there can be more than one link per object
• Example analyzer: Link/Association between RecoParticle and MCParticle (link):

Links in DataSource

• One-to-one relationships between two collection types, e.g.:
  • MCParticle ↔ ReconstructedParticle
  • SimTrackerHit ↔ TrackerHit
• Relationships between Simulation and Reconstruction side provided out of the box
• Users can define their own
• Possible rewrite:

• Allows to use EDM4hep/PODIO tools to resolve all links to an object:

Benchmark I.

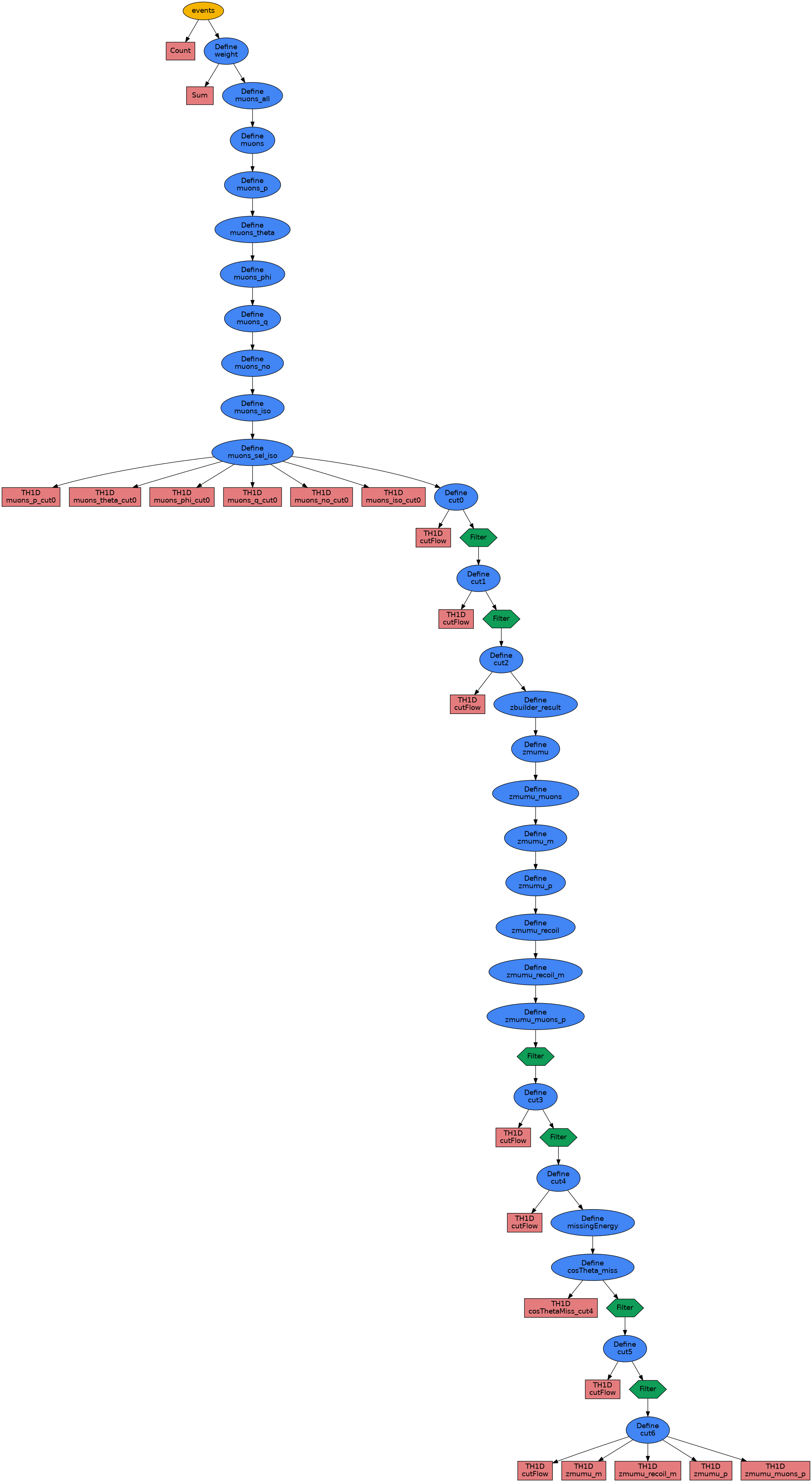

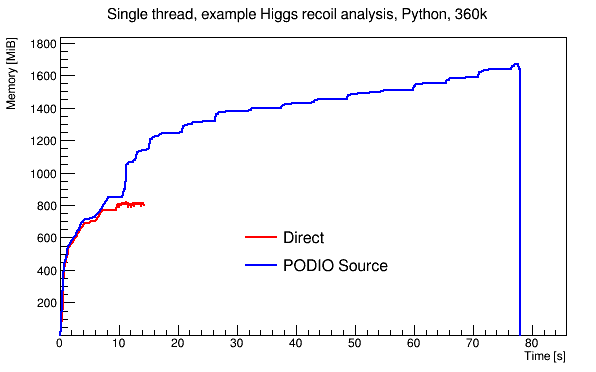

• examples/FCCee/higgs/mH-recoil/mumu/analysis_stage1.py: 33488 evt./s
• examples/data_source/analysis_stage1.py: 4824 evt./s

Benchmark II.

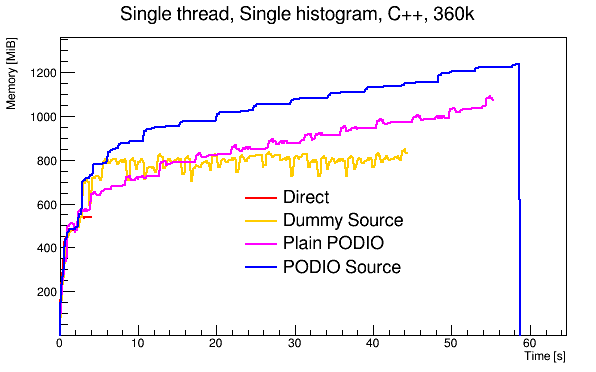

• Create single histogram of EFlowPhoton cluster energy
• PODIO Source, Dummy Source, and plain PODIO request all collections of the event

Benchmark III.

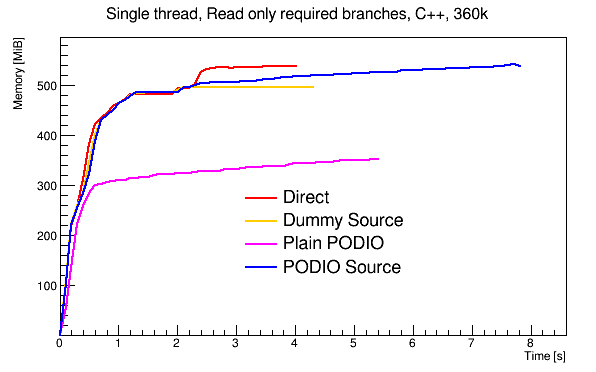

• Create single histogram of EFlowPhoton cluster energy
• Making sure only one branch is read

Conclusions

• Focus of EDM4hep is in Simulation & Reconstruction
• Let's try to avoid reimplementing EDM4hep objects/collections in the RDF Analysis
  • Current index shuffling is tedious and error prone in direct RDataFrame
  • Changes to EDM4hep/PODIO require adaptation of analysis code
• With podio::DataSource:
  • Analyzer can work with fully fledged EDM4hep objects
  • Schema evolution handled by PODIO itself
  • Performance can get close to direct RdataFrame
• Continuing with podio::DataSource optimizations:
  • Properly distribute the event ranges
  • Activate only the collections needed
