FCCAnalyses and Distributed Computing

Juraj Smieško (CERN)

9th FCC Physics Workshop

Munich, DE

29 January 2026

FCCAnalyses

Key4hep

Coherent set of packages, tools, and standards for future colliders

  • Common effort from FCC, CLIC/ILC, EIC, CEPC, Muon Collider, …
    • Preserves and adds onto existing functionality from iLCSoft, FCCSW, CEPCSW, …
    • Builds on top of the experience from LHC experiments and results of targeted R&D (AIDA, …)
    • Many institutes involved: CERN, DESY, IHEP, INFN, IJCLab, …
  • Each project rebases its stack on top of Key4hep
  • Having common building blocks enables synergies across collider communities
  • Main ingredients:
    • Event data model: EDM4hep, based on PODIO, AIDA project
    • Event processing framework: Gaudi, used in LHCb, ATLAS, …
    • Detector description: DD4hep, AIDA project
    • System to build, test and deploy: Spack, suggested by HSF + CVMFS
Key4hep logo
Key4hep design

FCCAnalyses

  • FCCAnalyses — common analysis framework for FCC:
    • ROOT RDataFrame based
    • Provides analyzer functions/functors of varying complexity
      • Analysis is composed out of those
    • Written in C++ and Python
    • Handles input dataset metadata
    • Manages running of the dataframe: locally or on HTCondor
    • Events data can be read in directly by RDF or through RDataSource
  • Accompanying infrastructure of FCCAnalyses
  • Getting help

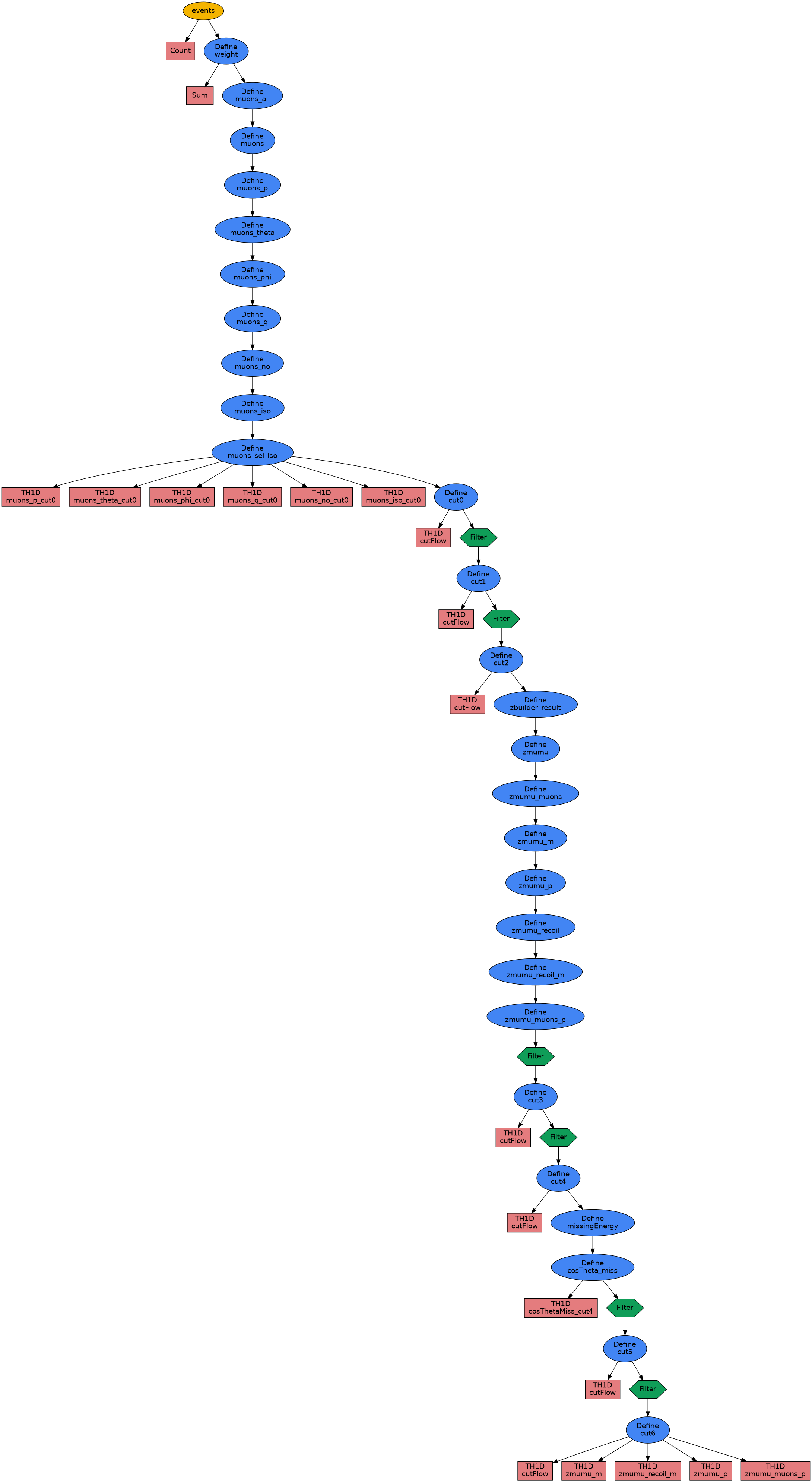

Analysis graph
Example Higgs recoil analysis

Where to get FCCAnalyses

  • Latest tag: v0.12.0 was released two weeks ago
  • FCCAnalyses is distributed in the Key4hep stack:
    • Key4hep Release:
      source /cvmfs/sw.hsf.org/key4hep/setup.sh
    • Key4hep Nightlies:
      source /cvmfs/sw-nightlies.hsf.org/key4hep/setup.sh
  • Developing FCCAnalyses:
    • git clone git@github.com:HEP-FCC/FCCAnalyses.git
    • source setup.sh -h
  • Specialized version for winter2023 datasets can be obtained only from GitHub
    • git clone --branch pre-edm4hep1 git@github.com:HEP-FCC/FCCAnalyses.git
    • Works with fixed Key4hep stack: 2024-03-10

What is an Analyzer

Set of self-contained functions/functors operating on ROOT dataframe

  • Many functions/functors to run on a dataframe columns provided from outside of FCCAnalyses (usually low level)
  • More specialized ones provided in FCCAnalyses standard library
    • A lot missing due to many input/output objects and their combinations
    • dNdx analyzers now properly use edm4hep::RecDqdxData
  • Current analyzers depend on the following C++ frameworks
    • ROOT — together with RDataFrame
    • ACTS — track reconstruction tools (not fully supported)
    • ONNX — neural network exchange format
    • FastJet — jet finding package
    • DD4hep — detector description
    • Delphes — fast simulations
  • Recent improvements in the ROOT Python interface
  • Fork model of FCCAnalyses creates many copies of the analyzers, which are shared among different groups
    • Upstream your functions/functors!
  • The operations on the dataframe happen
    with small stateless functions:
  • or with structs, which have internal state:

How to write an analysis

Analysis encapsulated into a class
  • Run stage can be encapsulated into a class: Analysis
    • Possibility to provide parameters from outside
    • Avoids evaluating the parts of the analysis script at the bootstrap stage
  • Histmaker style analysis can also receive CLI arguments
  • Many attributes are being documented in
    fccanalysis-script, fccanalysis-final-script and fccanalysis-plots-script manual pages
  • The additional analyzers can be provided in a .hxx header file
    • The analyzers will get JIT compiled at startup
    • Old extension method involving additional compilation with CMake is deprecated

How to run an analysis

Analysis behavior depends on multiple categories of command-line arguments.

  • The anatomy of the fccanalysis command line interface:
    fccanalysis <global-args> <sub-command> <sub-command-args> <analysis-script> -- <script-args>

    Example:
    fccanalysis -vv run --n-threads 4 my_fcc_analysis.py -- --pt-min 40

    -- (double dash) required to properly provide the user arguments to the analysis script

  • The verbosity is a global argument and is synchronized with ROOT RDataFrame
  • Promising benchmarks showing recovering of performance when using podio::DataSource
    • Requires work on clever retrieval of collections
  • TupleWriter under development: k4FWCore#364
    • Base algorithm to create NTuples

Where to run an analysis

Making FCCAnalyses distributed

HTCondor logo
DIRAC Logo
iLCDirac Logo
  • FCCAnalyses supports HTCondor submission for a long time
    • fccanalysis submit ana-script.py
  • Easier running on local files with a file list
    • New -i, --input and -f, --input-file-list arguments
    • Sample location can be specified individually with input-dir parameter in the Process list
    • Running on centralized samples will get reworked
  • Users can submit FCCAnalyses to DIRAC
    • Example workflow shows how to submit jobs with winter2023 compatible FCCAnalyses
    • One sample per submission
    • Based on DIRAC General Application

Other approaches

Exploring other languages and software ecosystems

  • podio allows writing an analysis in C++ and Python
  • RDataFrame in C++ w/wo analyzers from FCCAnalyses
  • Coffea — awkward-arrays based columnar analysis framework
  • Julia: high-level, general-purpose dynamic programming language
Coffea logo Julia HEP logo

Future Plans / Challenges

Focus on the flagship analyses important for the benchmarking of the detector designs

  • Support processing of RNTuple files
  • Expand distributed computing options
    • Allow running on grid GRID, Slurm or other platforms
  • Better ML support
    • Streamline current implementation
    • Investigate/adopt ROOT solutions e.g. TMVA SOFIE
    • Join the developments in Key4hep
  • Work on overcoming software ecosystem silos
    • Key4hep, PyHEP, DiracOS, Rucio, …
    • Streamline NTuple production mechanism and improve performance of directly handling EDM4hep objects
    • Invest time in tooling/approaches which can bridge the gap
  • Make the framework more robust and expand its capabilities
    • Merge staged and histmaker styles together
    • Bring CMS Combine to the Key4hep stack
    • Revive the plotting capabilities
Brace yourselves for more breaking changes!

Distributed Computing

Trinity of Dataset Production Systems

Designing the dataset production system for the pre-TDR era and beyond

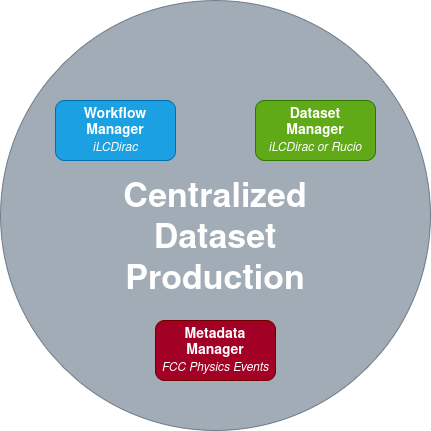

Centralized dataset production system
  • Traditionally the centralized dataset productions are handled with
    • Workload manager — DIRAC/iLCDirac
    • Dataset manager — DIRAC/iLCDirac or Rucio
    • Metadata manager — FCC Physics Events
  • DIRAC dataset management used by the LHCb
  • Investigations of the capabilities of Rucio underway
  • Capabilities of FCC Physics Events to be expanded
    • Support for API calls
    • Full dataset provenance
  • Crucial ingredient: How to address the datasets?
    • At the moment we use:
      • LFNs (Logical File names) in DIRAC, e.g.:
        fcc/ee/test_spring2024/240gev/Hbb/CLD_o2_v07/rec/
      • Collection of 5 tags in EventProducer, e.g.:
        accelerator, campaign, stage, detector, process

FCC VO

Resources available in the FCC Virtual Organization

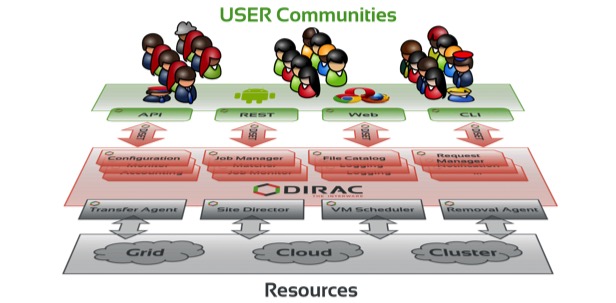

DIRAC Overview
DIRAC Resources Overview

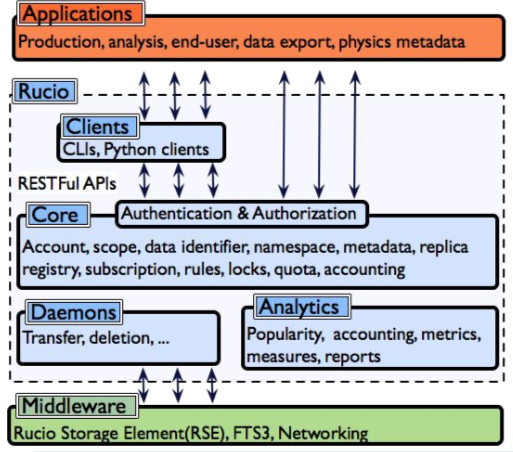

Rucio Overview
Rucio Architecture Overview
  • FCC resources administered by FCC VO FCC VO
    • Registered at EGI
    • Could be used by individual users and for centralized dataset production
    • Support e-group: fcc-vo-support@cern.ch
  • Resources in the VO:
    • Four fully operational Storage Elements
    • Only one Compute Element in the VO
    • More in various stages of readiness
    • Resource pledges are not rigidly formalized yet
  • Continuing to exercise the system in a test campaign
    • Full campaign will be launched soon
    • Productions configuration kept in FCCDIRAC repository
    • Succesfuly tested job result storage on the operational SEs
    • Testing replications done through DIRAC to CNAF-DISK and BARI-DISK
    • Rucio pilot replications underway

DIRAC / iLCDirac @ FCC

Interware to exploit distributed heterogeneous resources

DIRAC Logo iLCDirac Logo

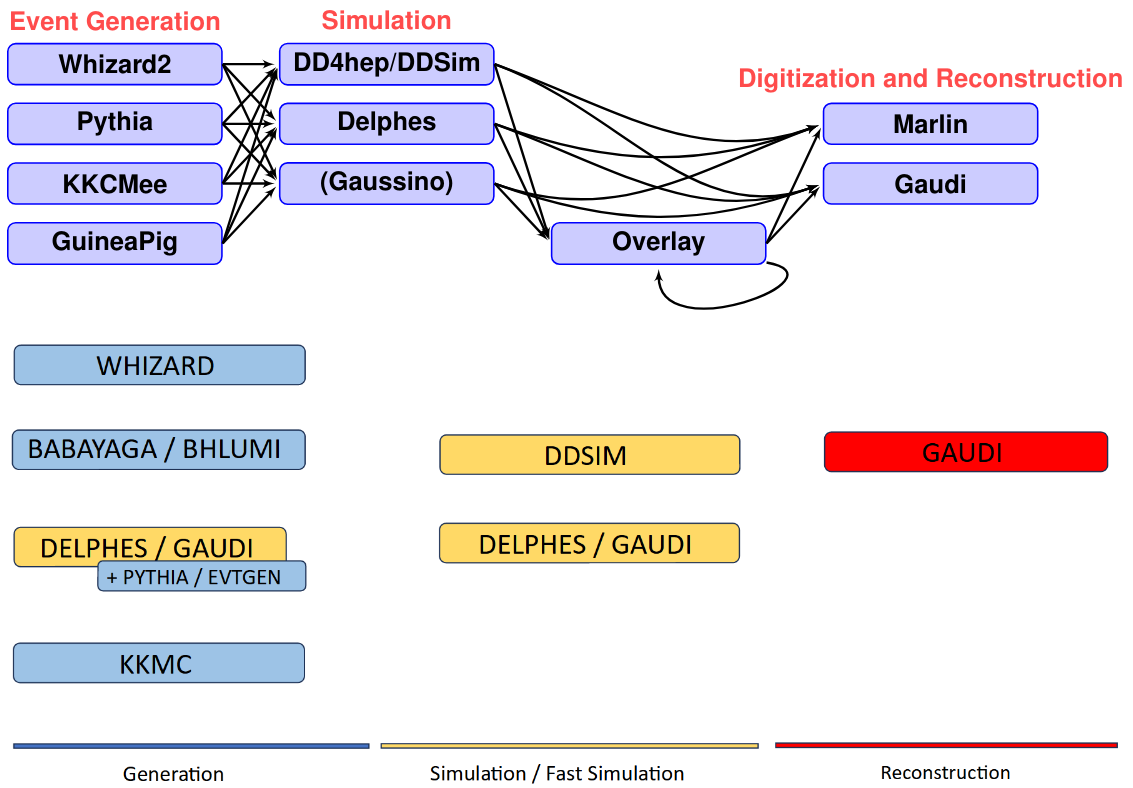

DIRAC Applications
  • Created by LHCb, these days used by Belle2, ILC, CTAO, CEPC, …
  • High level interface to interact with GRIDs, Clouds, HPCs and Batch systems
  • iLCDirac: set of extensions / applications developed for the linear collider studies
  • Offers data / metadata management
    • File transfers / replications, metadata augmented file catalog
  • Has web interface to control aspects of the system
      Transformations, jobs, accounting, system administration
  • New developments happen under the DiracX project
  • Software needs to be wrapped into a DIRAC application
    • Many already available thanks to iLCDirac
    • More to be added to support users/productions of FCC
      • MC generators, interfaces for Key4hep based applications, ...
  • See talk by A. Sailer

Rucio

Scientific data management

  • Rucio provides a system to manage experiment datasets across distributed resources
  • Initially developed in ATLAS, now used by a number of large and small collaborations
    • Showing the ability to scale to very large pools of data
  • Organizes data in a hierarchy of namespaces, containers, datasets and files
  • Placement of the data dependent of the replication rules
    • Describing storage and time limitations
  • Interfacing between DIRAC and Rucio already done by Belle2
  • FCC Rucio instance managed by the CERN IT
  • See talk by G. Guerrieri
Rucio logo

Centrally produced datasets

Current situation with already produced datasets

  • Datasets include generator level files and parametrized simulation for FCC-ee and FCC-hh
  • Stored on EOS at:
    /eos/experiment/fcc/<accelerator-type>/generation/
  • Detailed information about EventProducer datasets published on FCC Physics Events website
  • FCCAnalyses framework automatically picks up the sample information from YAML and JSON files
      The interface under overhaul, moving towards API call(s)
  • Several FCC-hh Fullsim and Delphes campaigns moved to tape
    • Sample metadata kept on the website for historical record

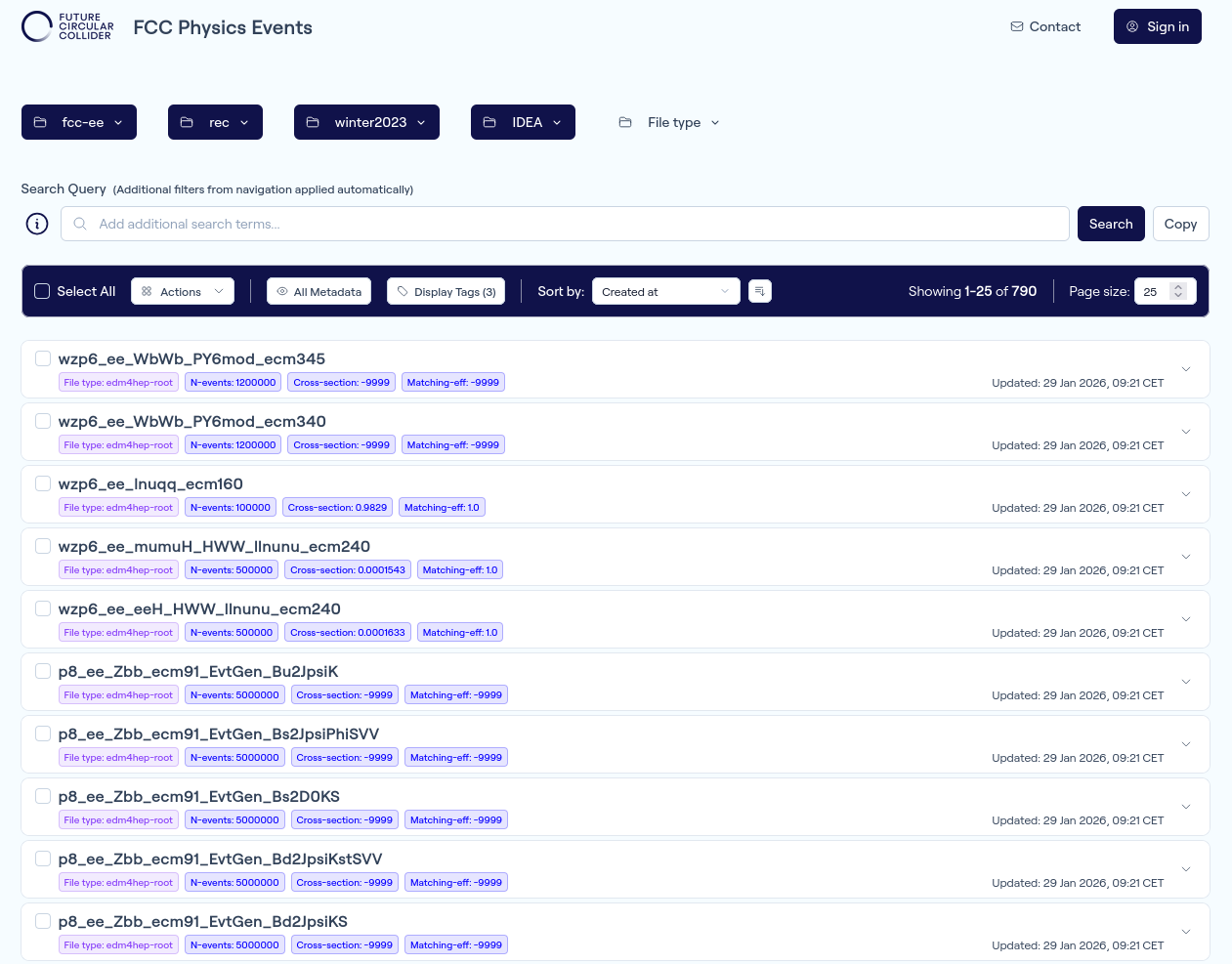

FCC Physics Events website.
FCC Physics Events

FCC Physics Events

Evolving FCC Physics Events into Metadata Manager

FCC Physics Events website.
FCC Physics Events
  • New FCC Physics Events Website based on modern web technologies
  • Can ingest multitude of datatypes
  • Core categories are columns in the database, rest of metadata is stored as a JSON string
  • Already provides API endpoint for serving dataset metadata in a JSON dictionary
  • See talk by M. Cechovic
  • Plan to implement dataset provenance
    • Open to switching to a more robust tool down the line

Flare

FCCee b2Luigi Automated Reconstruction and Event processing

  • Framework allowing to organize user event processing chain into dynamic workflows based on b2luigi
  • Handles scheduling of complex workflows well
  • Orchestration happens at the level of executables
  • Integrated into the LCG based Key4hep stack
  • See talk by C. Harris
b2luigi logo
b2luigi logo

Conclusions

  • The FCCAnalyses framework evolves from the needs for the FSR case studies
    • Interface breaking changes are being gradually introduced
    • FullSim flagship analyses will require multitude of adjustments: analyzers, distributed computing, metadata access, …
    • Integrate or lower to threshold for interfacing the tooling from outside Key4hep
  • Looking forward for EDM4hep 1.0 — new campaign of centrally produced samples
    • Utilizing full potential of DIRAC/iLCDirac
    • Understanding the data management with Rucio
  • Crucial question: What to generate?
    • Input on what datasets you would you like to get produced needed!
