Pile-up Mitigation: Straw Picker
Table of Contents
Using all particles
Strategy to determine ρ:- Identify centers of hard-scatter jets by clustering all particles in the event.
- Order clustered jets by PT and take jets with PT higher than PT min, but no more than Nmax = 12.
- Subtract areas of the jets from detector area and remove all tracks associated with the jets.
- Divide sum of PT left in the event by the area.
Plots
Parameter | Value |
---|---|
Grid spacing | 0.5 |
Jet R | 0.7 |
Jet min pT | 5.0 GeV |

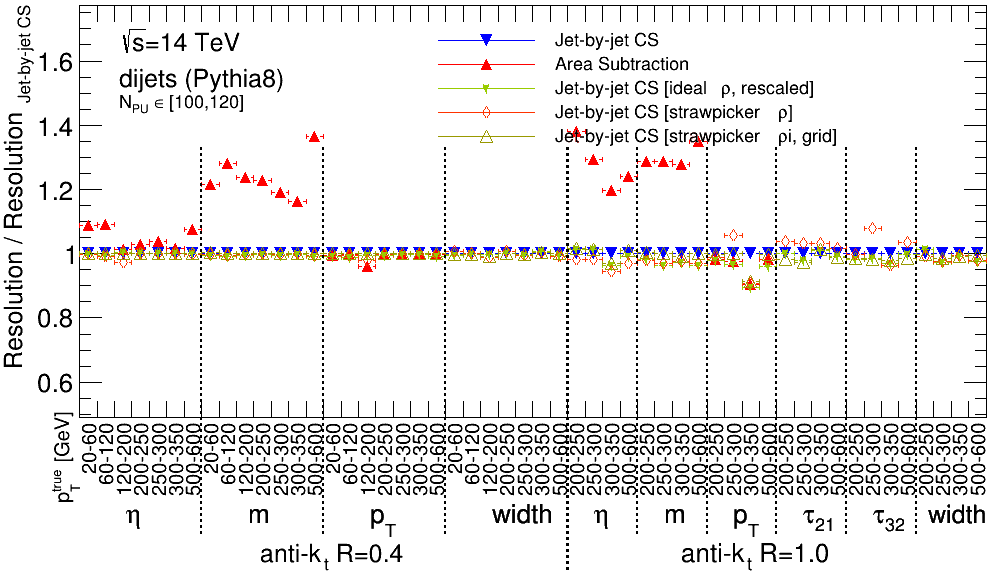

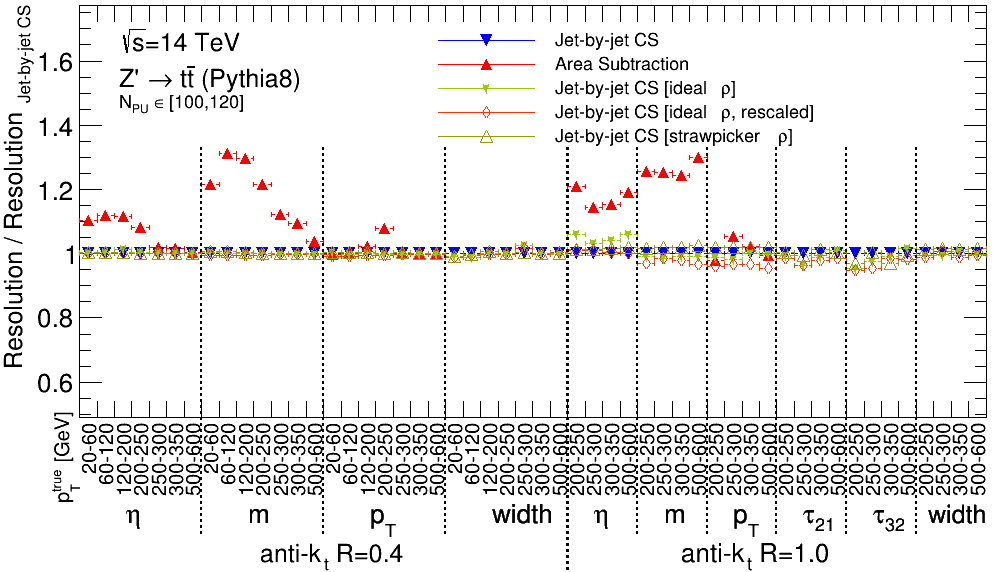

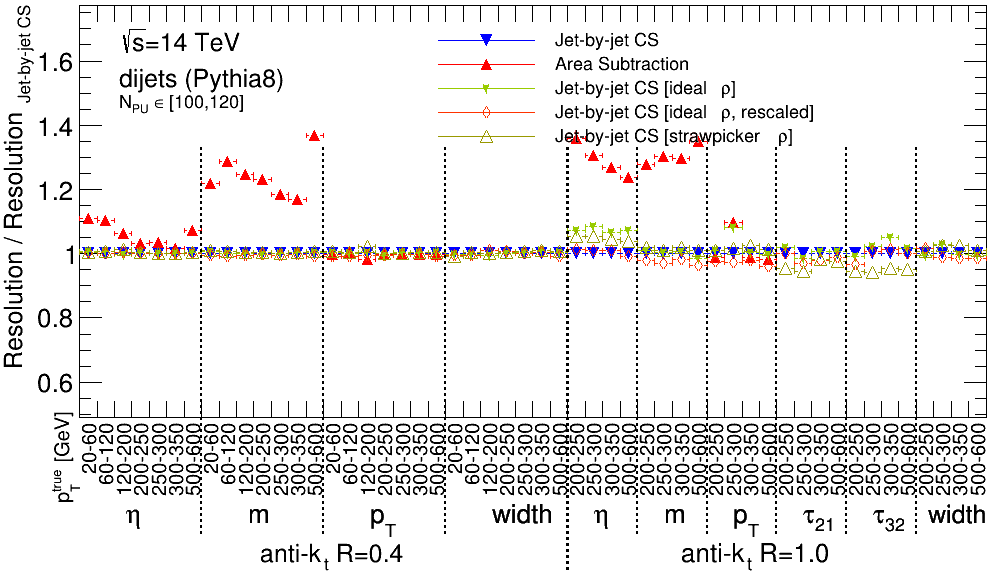

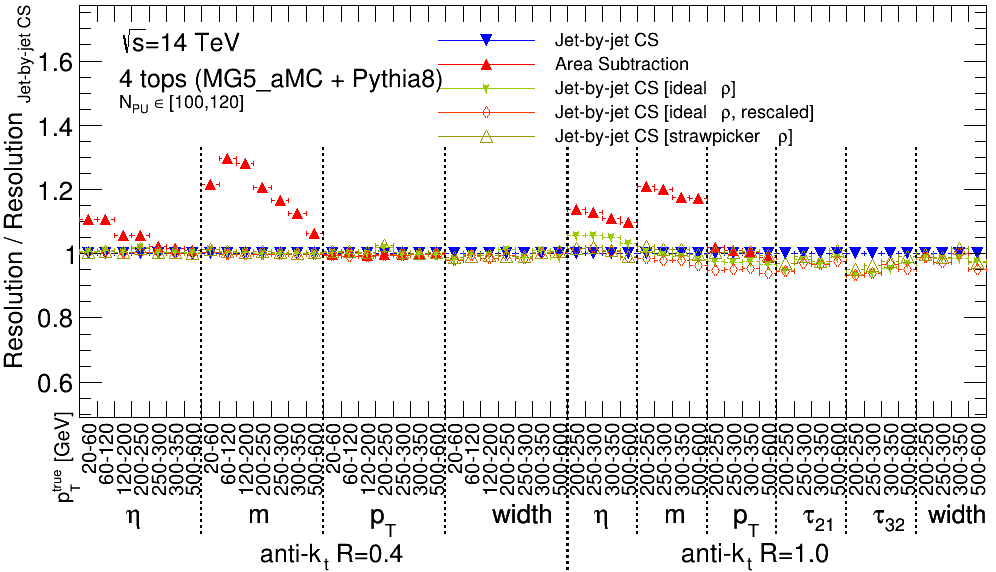

Resolution
4 Tops
![](./4tops/all/resolution_nPU.png)
Dijets
![](./dijets/all/resolution_nPU.png)
Z'
![](./zprime/all/resolution_nPU.png)

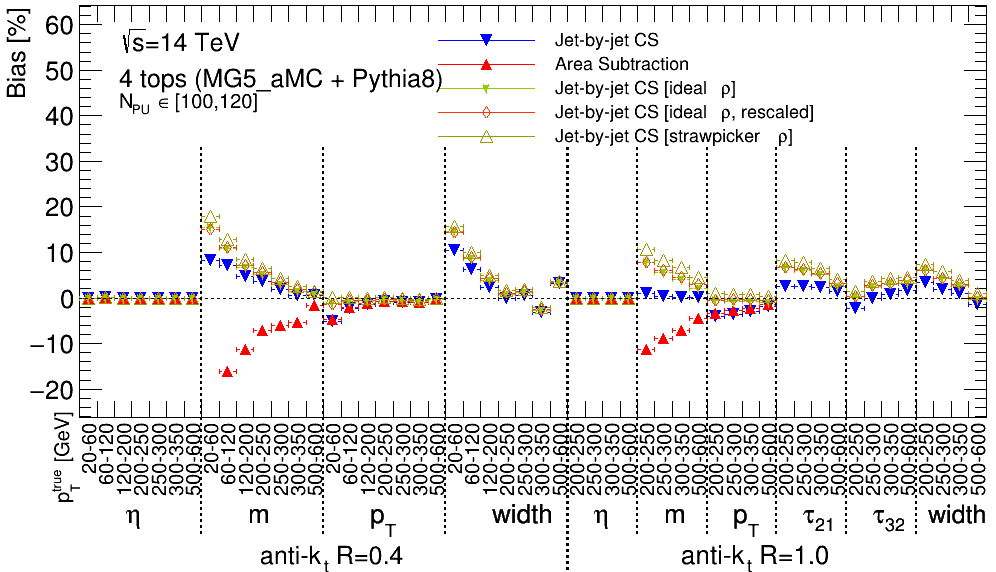

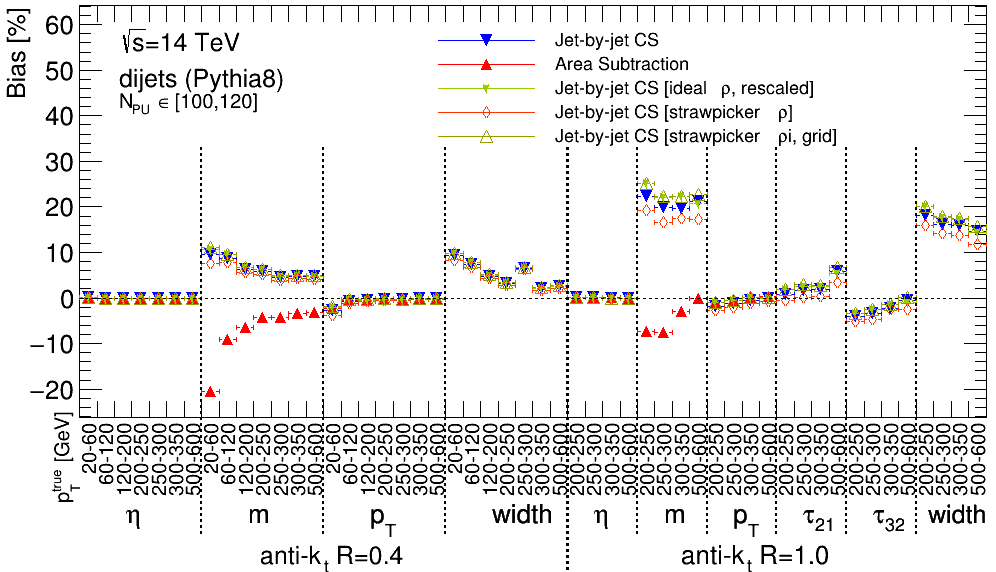

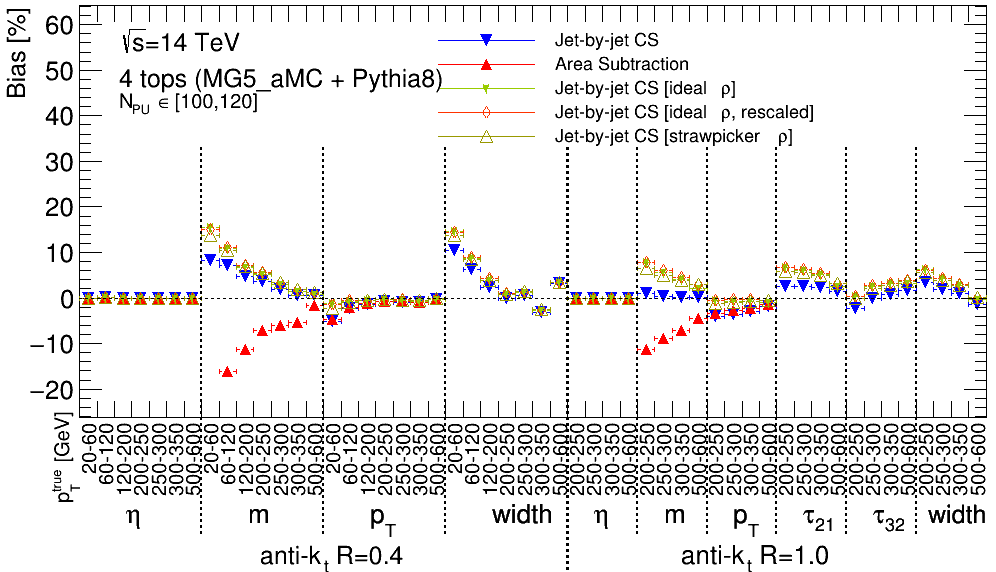

Bias

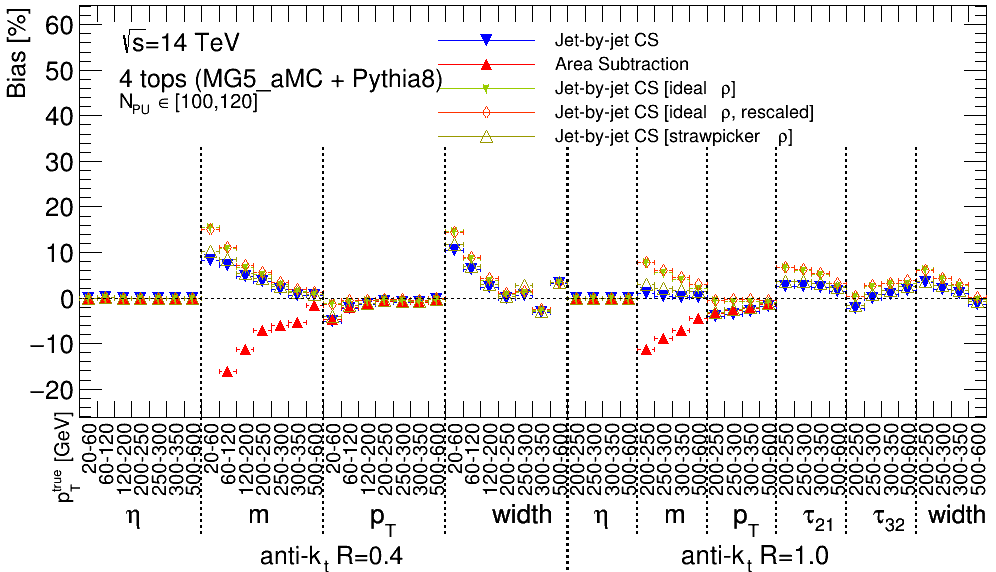

4 Tops
![](./4tops/all/bias_nPU.png)

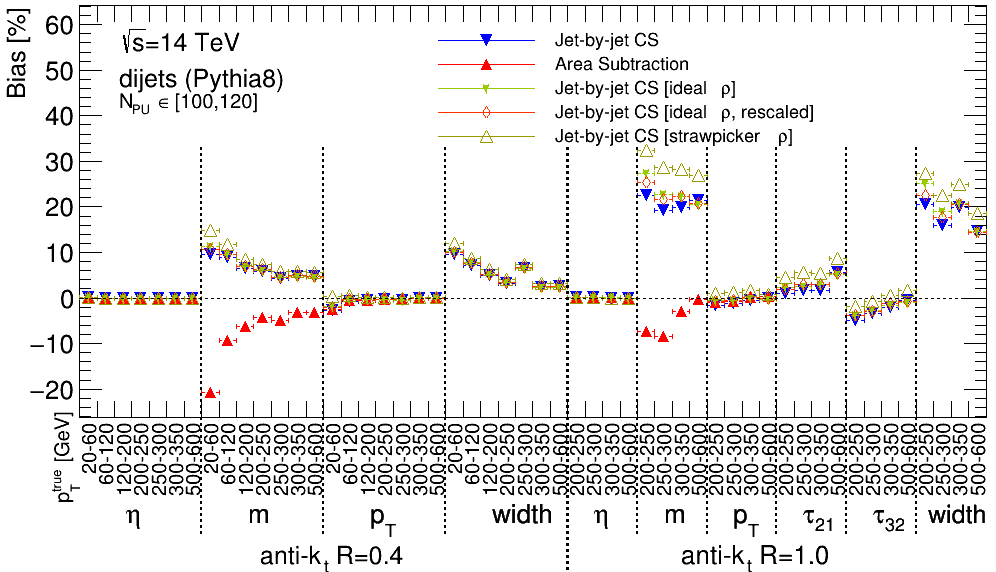

Dijets
![](./dijets/all/bias_nPU.png)

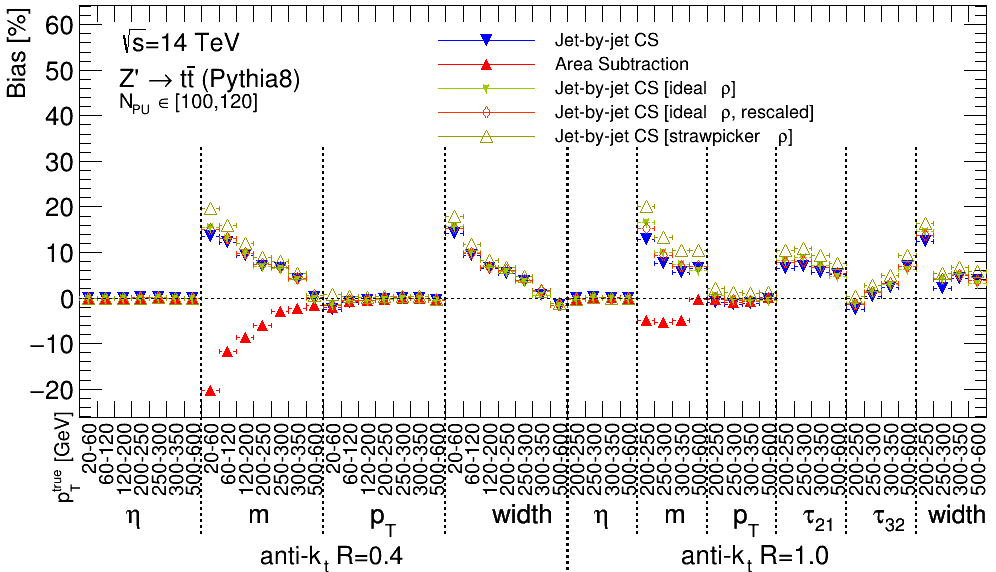

Z'
![](./zprime/all/bias_nPU.png)

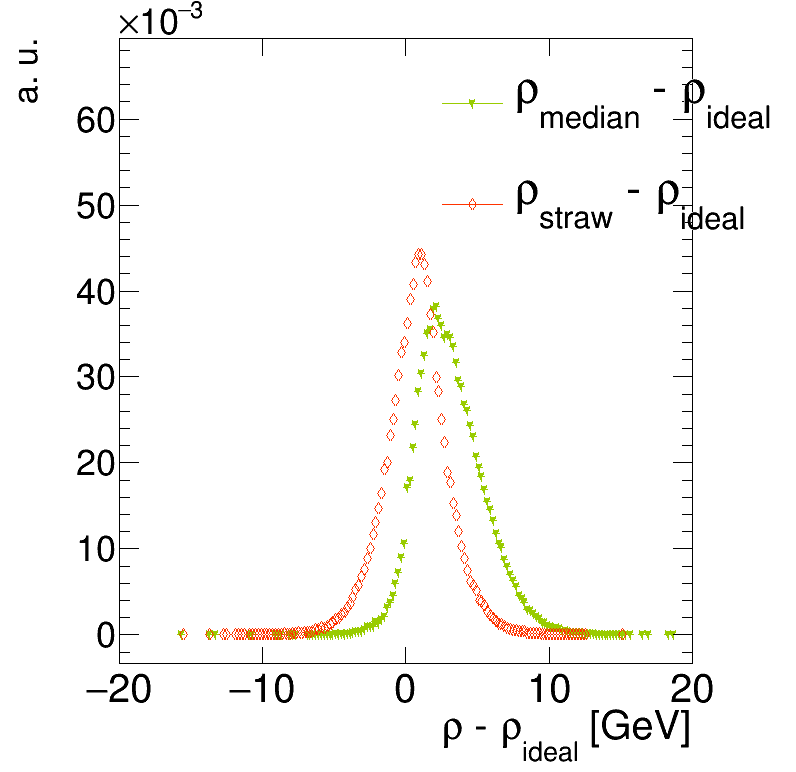

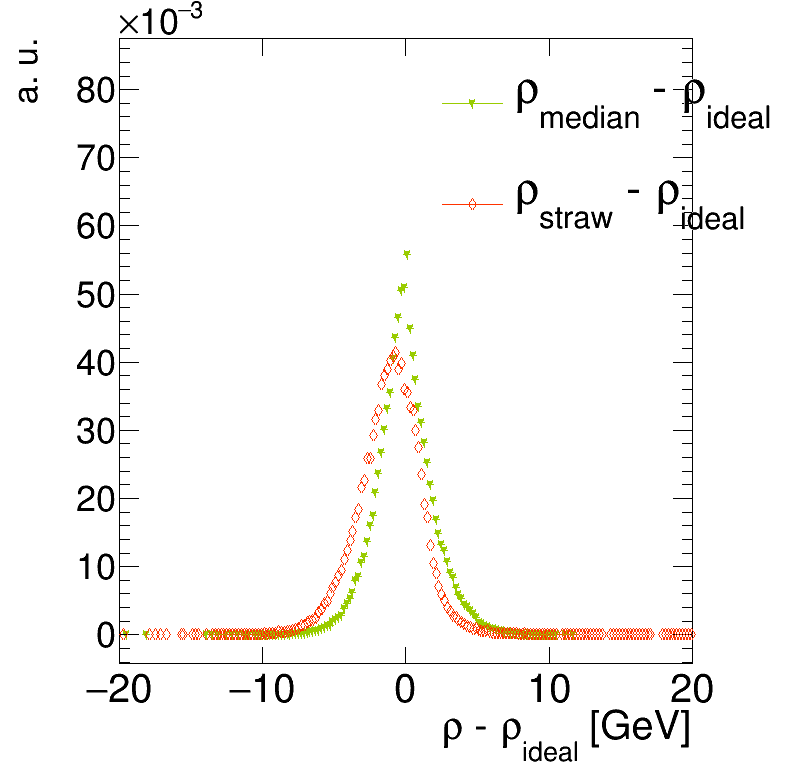

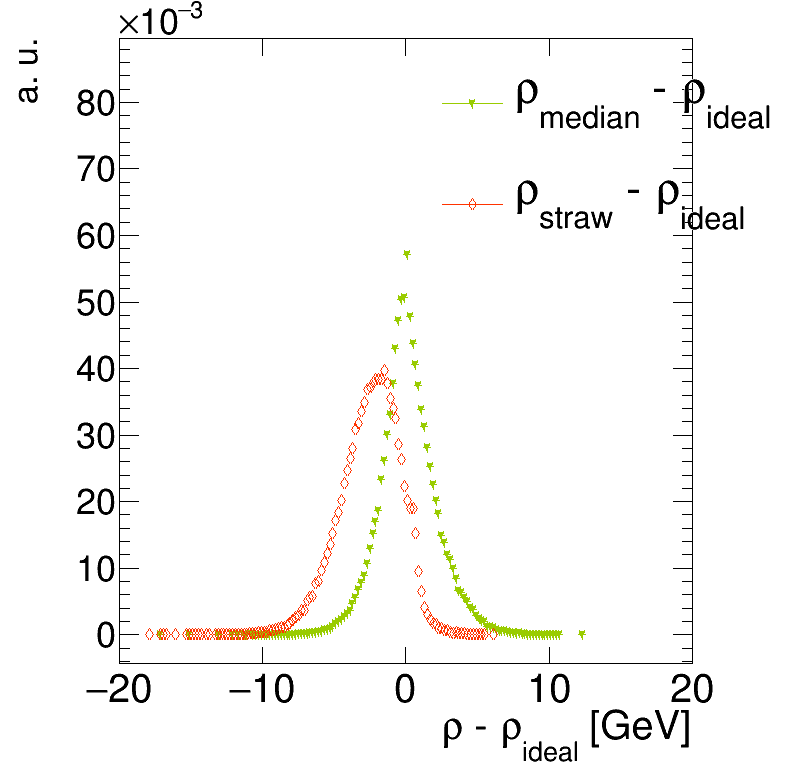

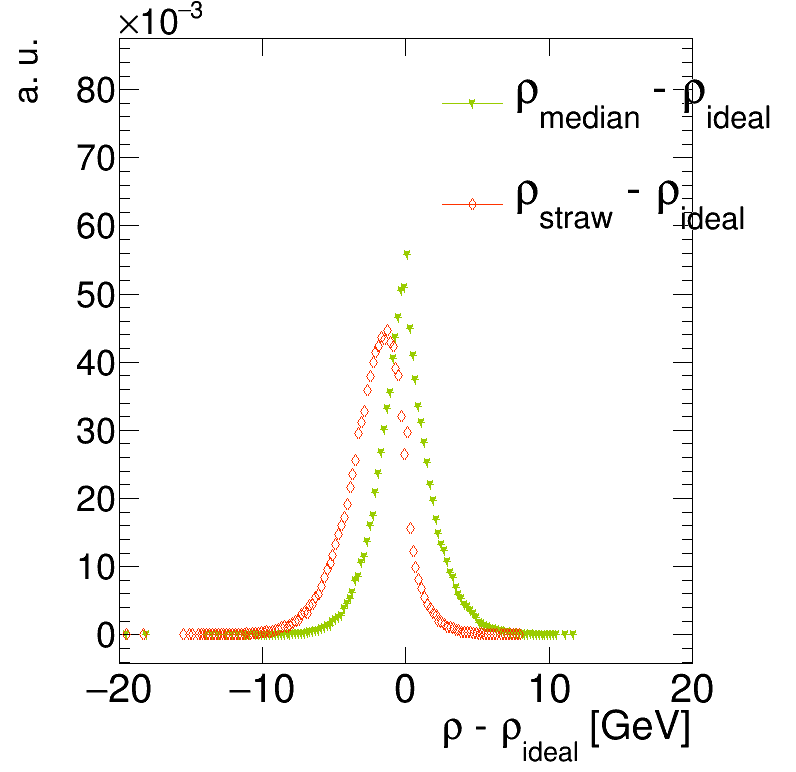

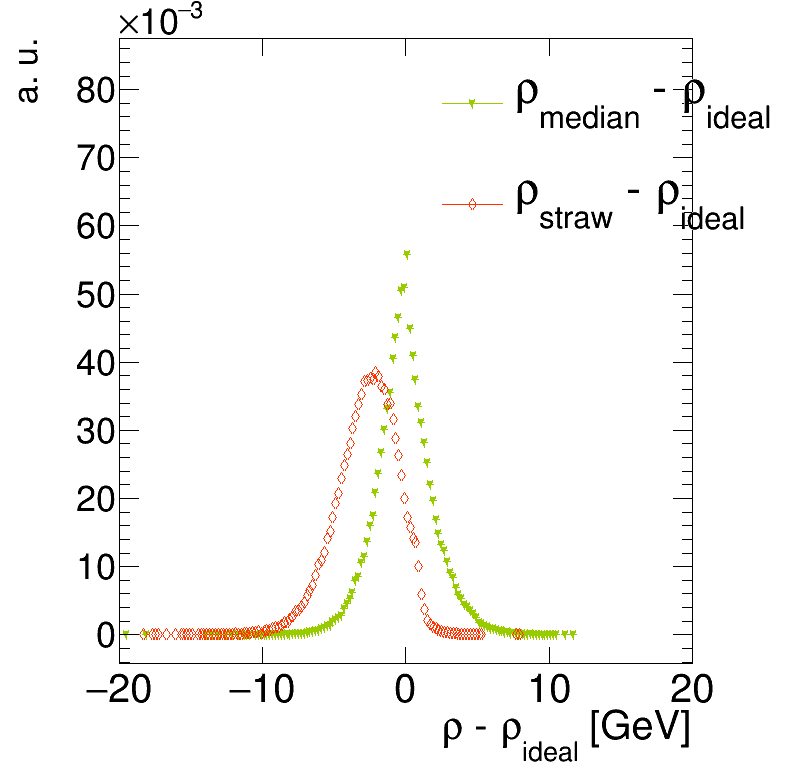

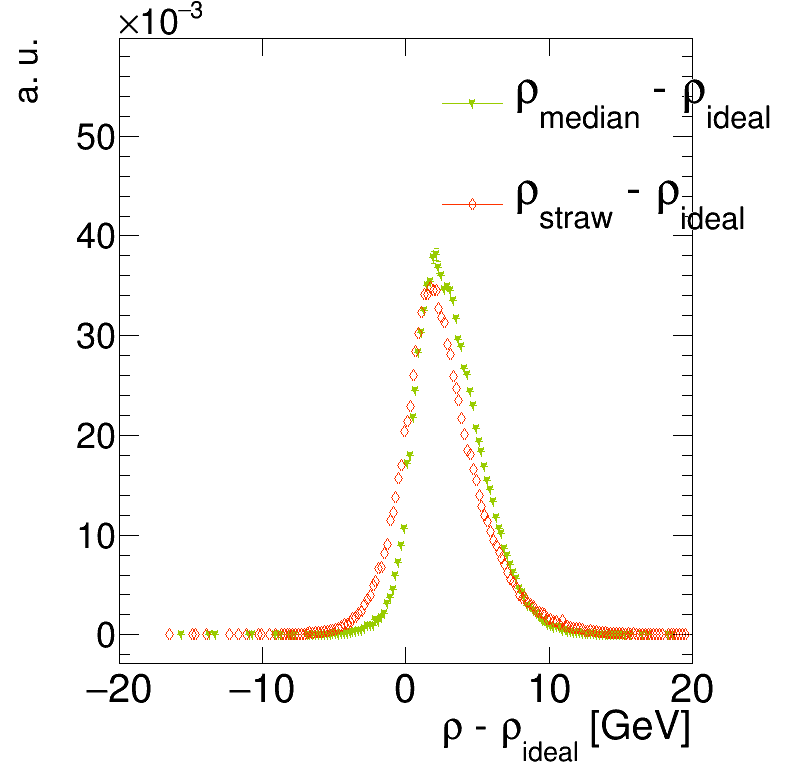

ρ Difference
4 Tops
![](./4tops/all/rhoMinusIdealRho.png)
Dijets
![](./dijets/all/rhoMinusIdealRho.png)
Z'
![](./zprime/all/rhoMinusIdealRho.png)
Using neutral particles
Strategy to determine ρ:- Identify centers of hard-scatter jets by clustering neutral particles in the event.
- Order clustered jets by PT and take jets with PT higher than PT min, but no more than Nmax = 12.
- Subtract areas of the jets from detector area and remove all tracks associated with the jets.
- Divide sum of PT left in the event by the area.
Plots
Parameter | Value |
---|---|
Grid spacing | 0.5 |
Jet R | 0.7 |
Jet min pT | 5.0 GeV |
Resolution
4 Tops
![](./4tops/neutral/resolution_nPU.png)
Dijets
![](./dijets/neutral/resolution_nPU.png)
Z'
![](./zprime/neutral/resolution_nPU.png)
Bias
4 Tops
![](./4tops/neutral/bias_nPU.png)
Dijets
![](./dijets/neutral/bias_nPU.png)
Z'
![](./zprime/neutral/bias_nPU.png)
ρ Difference
4 Tops
![](./4tops/neutral/rhoMinusIdealRho.png)
Dijets
![](./dijets/neutral/rhoMinusIdealRho.png)
Z'
![](./zprime/neutral/rhoMinusIdealRho.png)
Using charged signal particles
Strategy
Strategy to determine $\rho_\mathrm{straw}$:- Identify centers of hard-scatter by jet clustering charged signal particles in the event.
- Discard clustered jets with $p_\mathrm{T}$ smaller than $p_\mathrm{T}^{\min}$. Remaining jets order by $p_\mathrm{T}$ and keep at most $N^{\max}$.
- Tag all tiles which centers are closer to the centers of the jets than jet radius $R$.
- In every tile sum $p_\mathrm{T}$ of all deposits, excluding tagged ones. Tagged tiles exclude from the list of tiles.
- Determine median $p_\mathrm{T}^\mathrm{median}$ and divide it by tile area to obtain $\rho_\mathrm{straw}$
Settings
- Grid spacing: 0.5
- jet $R = 0.7$
- $p_\mathrm{T}^{\min} = 5$ GeV
- $N^{\max} = 12$
Plots $R=0.7$
Resolution
4 Tops
![](./4tops/charged/resolution_nPU.png)
Dijets
![](./dijets/charged/resolution_nPU.png)
Z'
![](./zprime/charged/resolution_nPU.png)
Bias

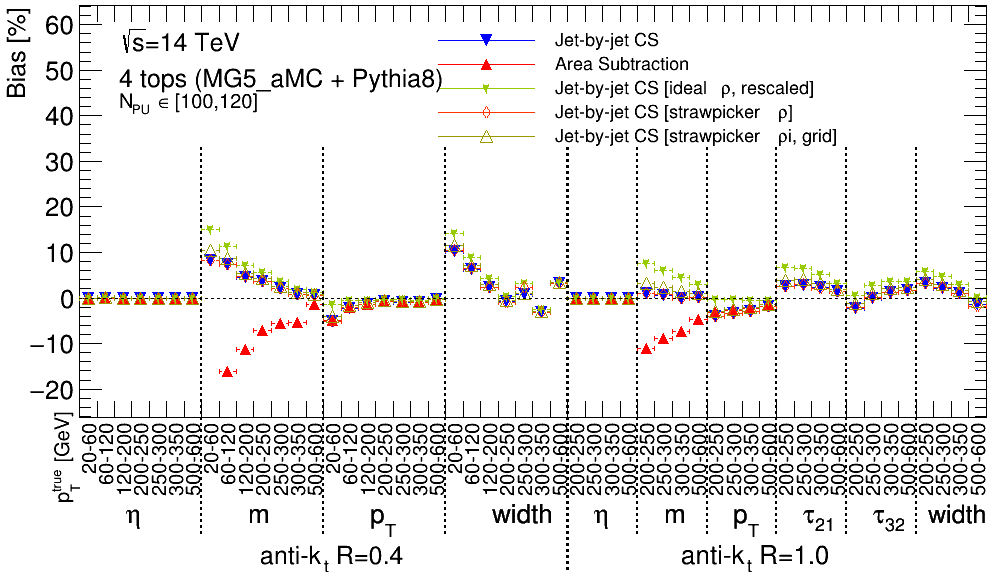

4 Tops
![](./4tops/charged/bias_nPU.png)
Dijets
![](./dijets/charged/bias_nPU.png)
Z'
![](./zprime/charged/bias_nPU.png)

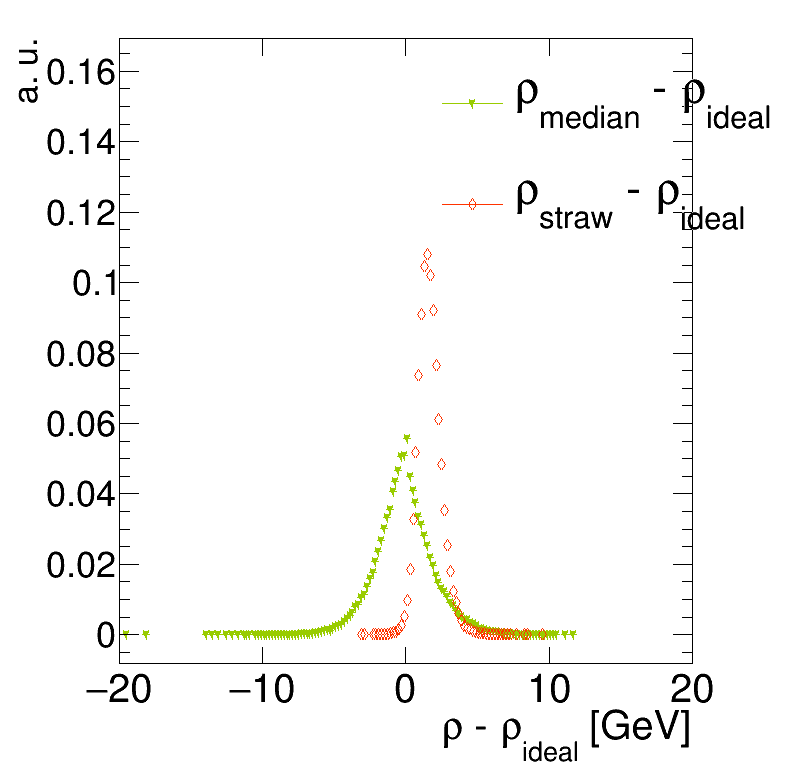

ρ Difference
4 Tops
![](./4tops/charged/rhoMinusIdealRho.png)
Dijets
![](./dijets/charged/rhoMinusIdealRho.png)
Z'
![](./zprime/charged/rhoMinusIdealRho.png)
Plots $R=0.2$
Resolution
4 Tops
![](./4tops/charged/r_0.2/resolution_nPU.png)
Dijets
![](./dijets/charged/r_0.2/resolution_nPU.png)
Bias
4 Tops
![](./4tops/charged/r_0.2/bias_nPU.png)
Dijets
![](./dijets/charged/r_0.2/bias_nPU.png)
ρ Difference
4 Tops
![](./4tops/charged/r_0.2/rhoMinusIdealRho.png)
Dijets
![](./dijets/charged/r_0.2/rhoMinusIdealRho.png)
